1927 Ford Model-T roadster

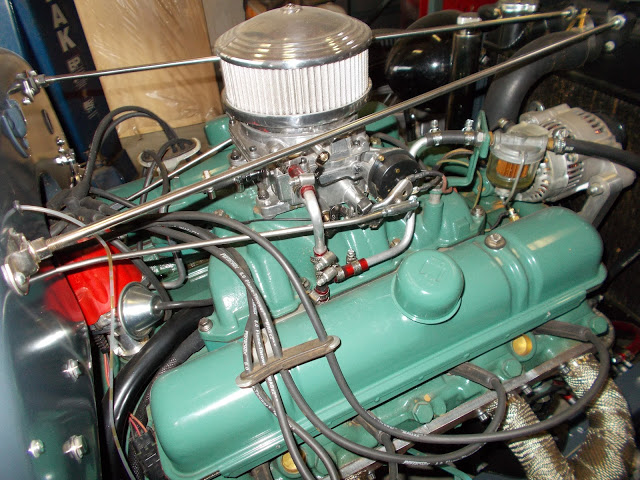

Based on a 1947 Mercury frame, this '26-'27 Model-T roadster features a 1957 Buick Nailhead V8, a two-speed Chevrolet Powerglide aluminium transmission and a Winters Quick Change rear end. The rear wheels are 1950's Packard Caribean, the front wheels are 1933-34 Ford. The front brakes are Lincoln Bendix, whilc the rears are ford Bendix. The steering column and shifter are original '47 Mercury whereas the steering wheel itself is the all time favourite from a 1940 Ford.

With it's extremely low centre of gravity and direct steering, this roadster handles like a gocart.


DSCN0003.JPG (75837 Byte) DSCN0006.JPG (59029 Byte) DSCN0019.JPG (68523 Byte) DSCN0013.JPG (64247 Byte)

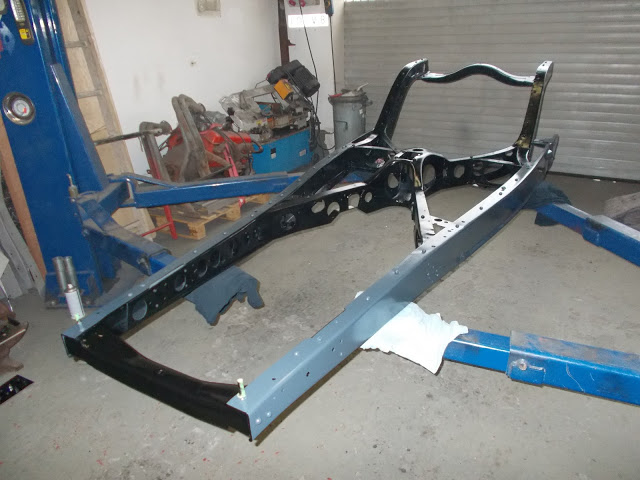

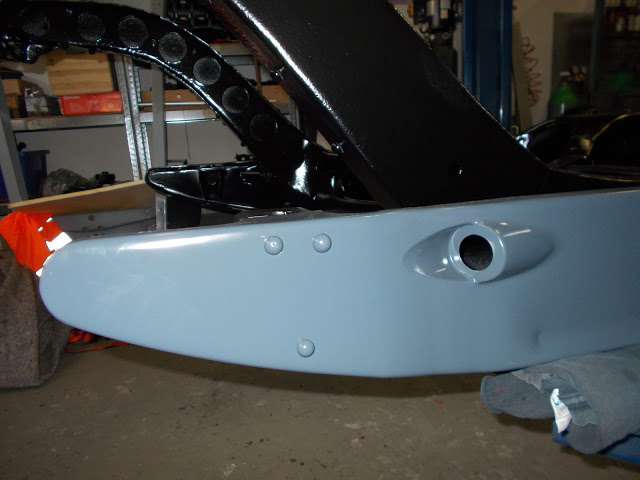

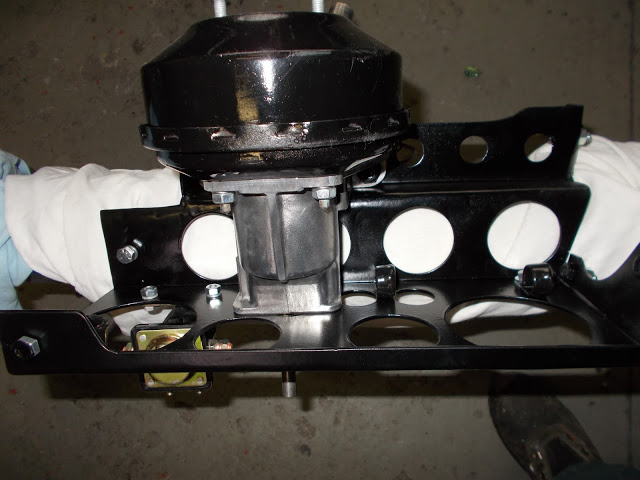

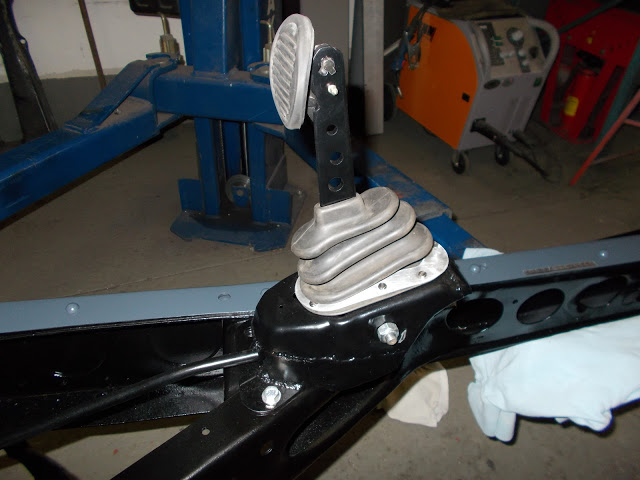

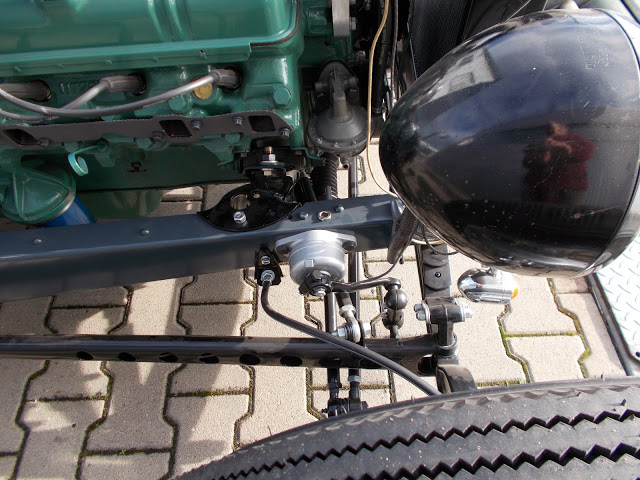

Based on an original 1947 Mercury frame with 1932 Ford Rails this build features a master cylinder and brake pedal from a Smart Fortwo.
DSCN0015.JPG (60894 Byte) DSCN0255.JPG (109448 Byte) DSCN0100.JPG (72937 Byte) DSCN0036.JPG (70050 Byte)

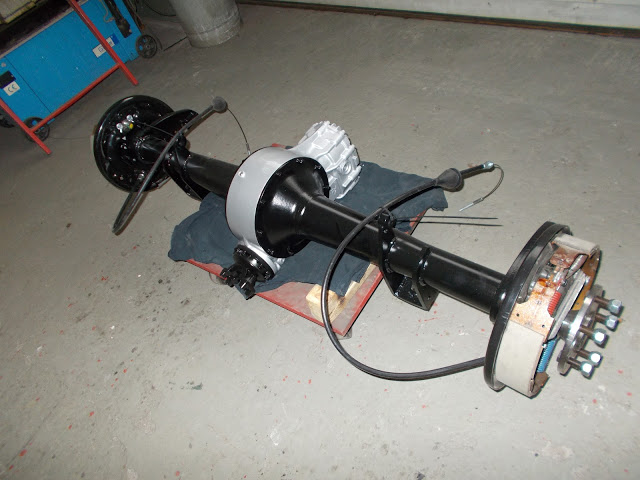

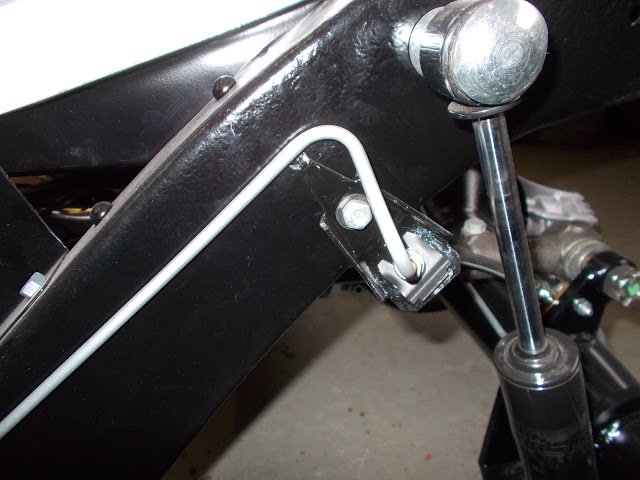

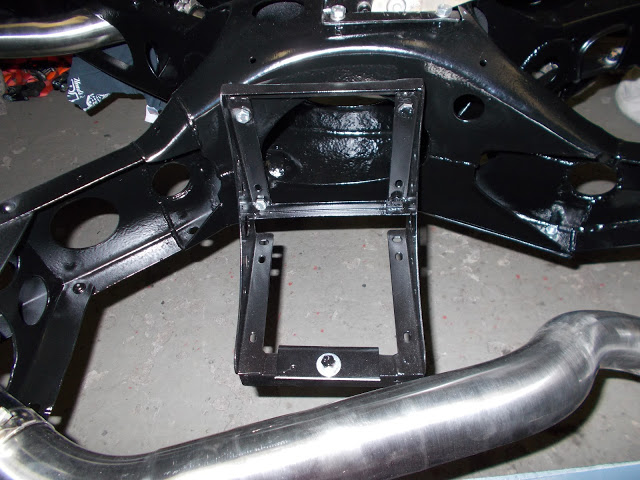

Front shocks are expensive Houdailles. The Winters quick change rear features standard aero shocks.
DSCN0024.JPG (77201 Byte) DSCN0022.JPG (90544 Byte) DSCN0021.JPG (78601 Byte) DSCN0753.JPG (86567 Byte)

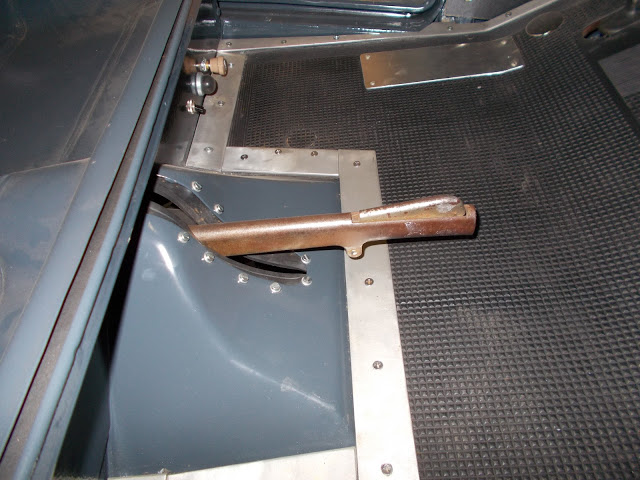

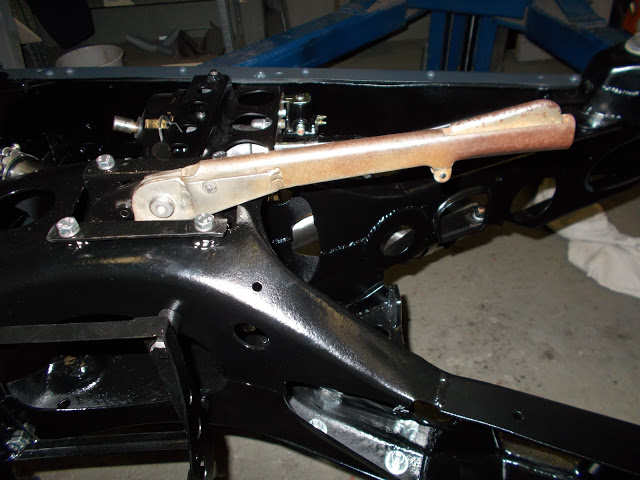

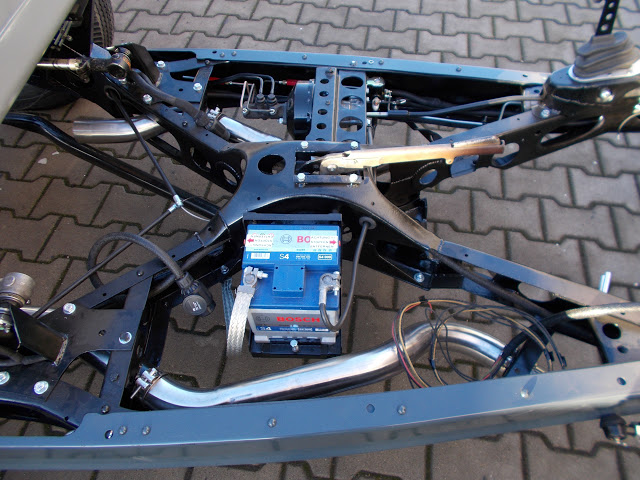

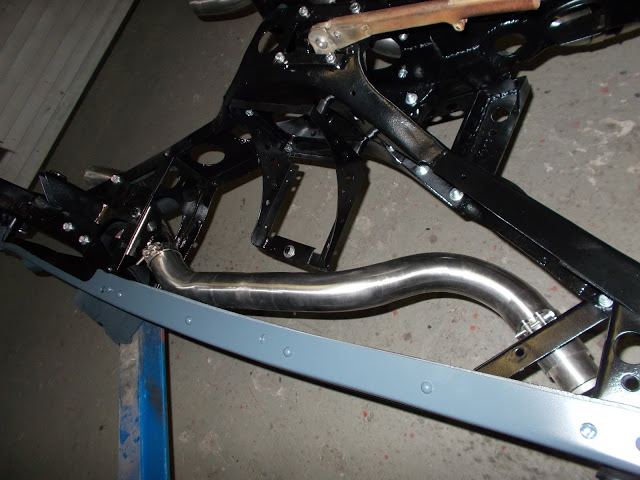

A hand made stainless steel exhaust is hard mounted to the frame. The battery lives under the seat and the handbrake lever is from an early Morris Oxford MO.
DSCN0132 (1).JPG (81042 Byte) DSCN0133 (1).JPG (110912 Byte) DSCN0134.JPG (98313 Byte) DSCN0135 (1).JPG (125459 Byte)

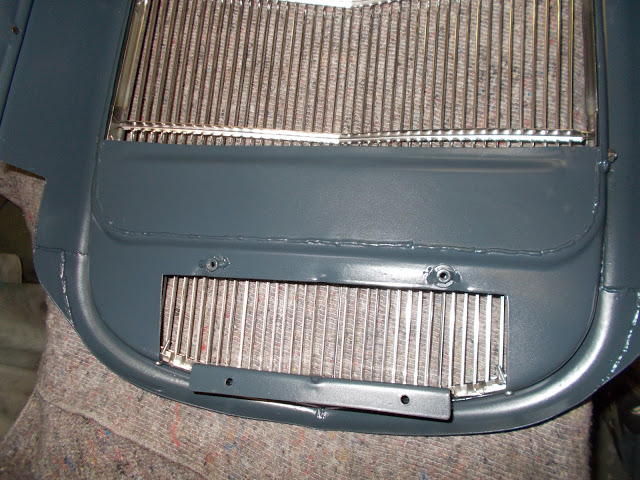

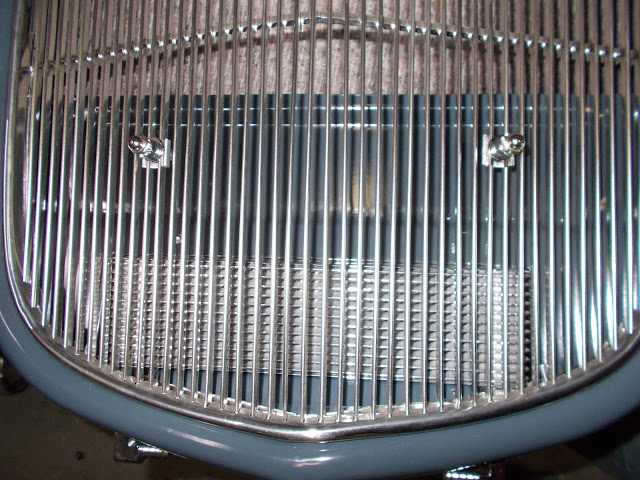

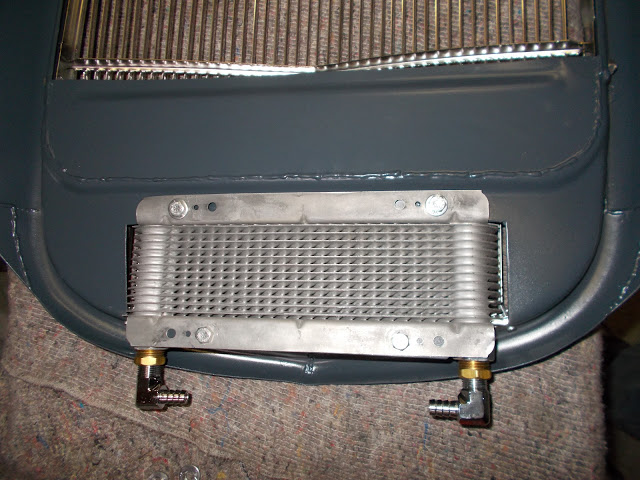

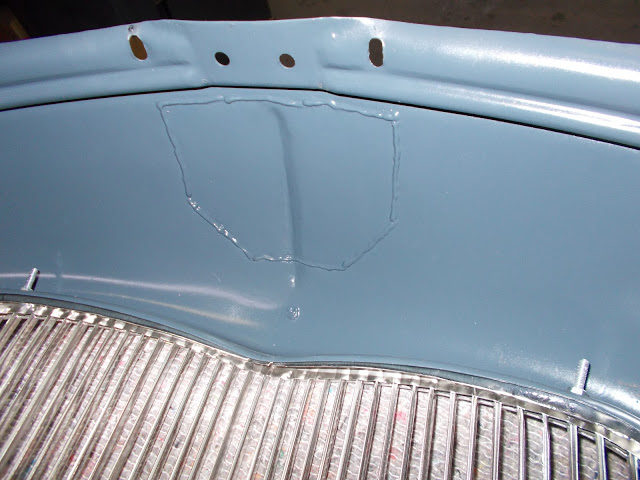

The grill shell is a filled, peaked and shortened 1932 shell from Vintiques. I mounted a transmission cooler to the lower part.
DSCN0143.JPG (113658 Byte) DSCN0144.JPG (117652 Byte) DSCN0154.JPG (119423 Byte) DSCN0155 (1).JPG (139562 Byte)

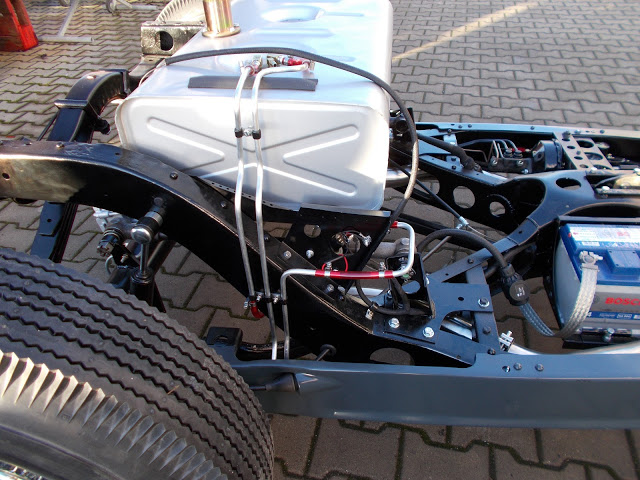

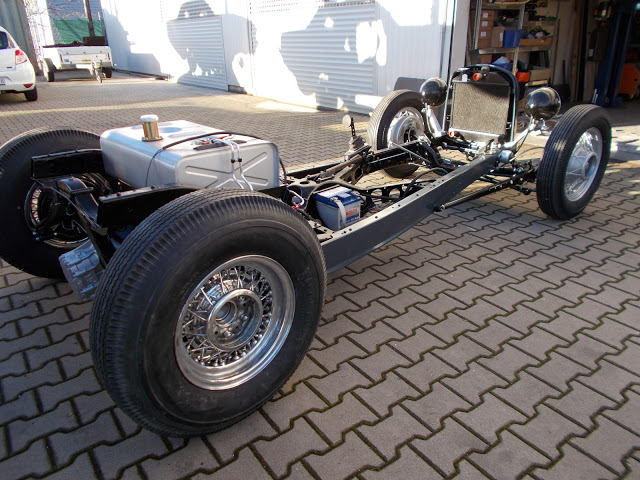

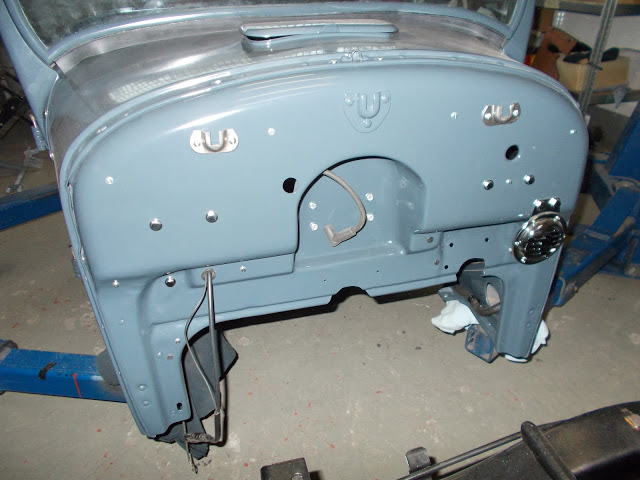

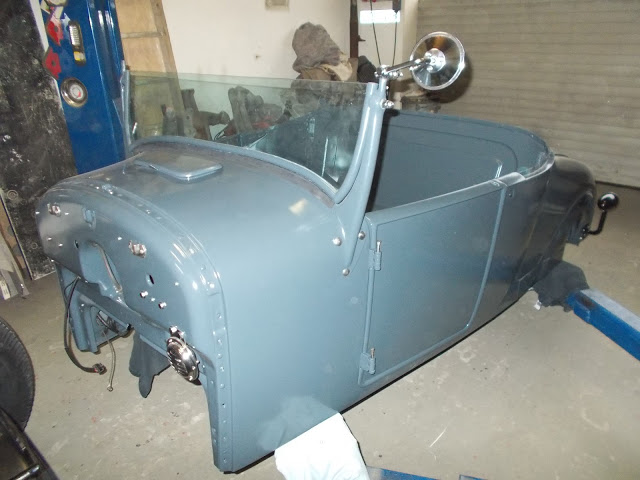

The most important part of all hotrods - the rolling chassis. This build features a very low centre of gravity.
DSCN0158.JPG (74654 Byte) DSCN0167.JPG (64827 Byte) DSCN0164.JPG (45255 Byte) DSCN0165.JPG (57806 Byte)

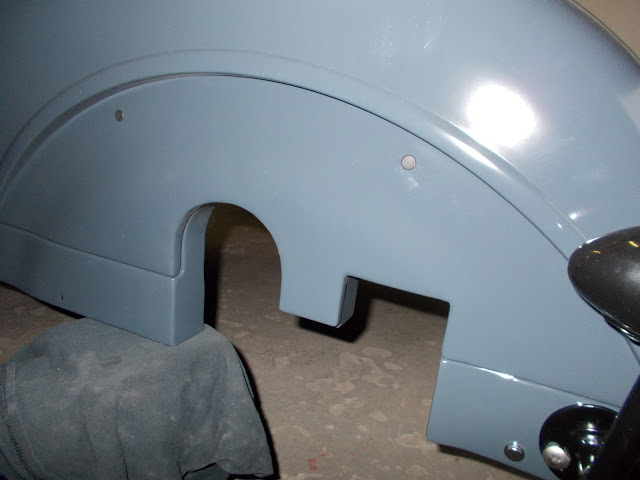

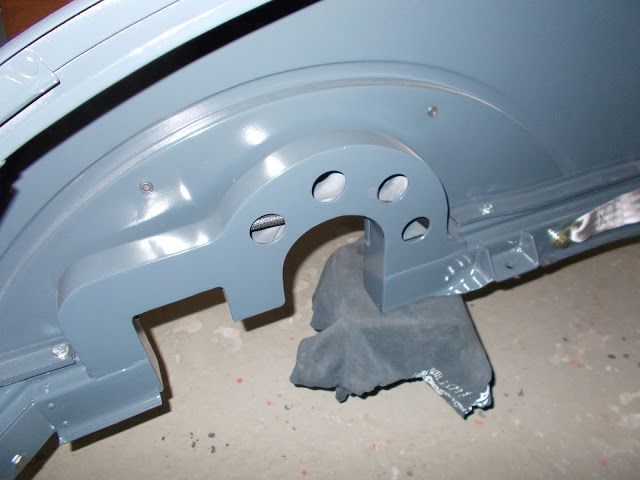

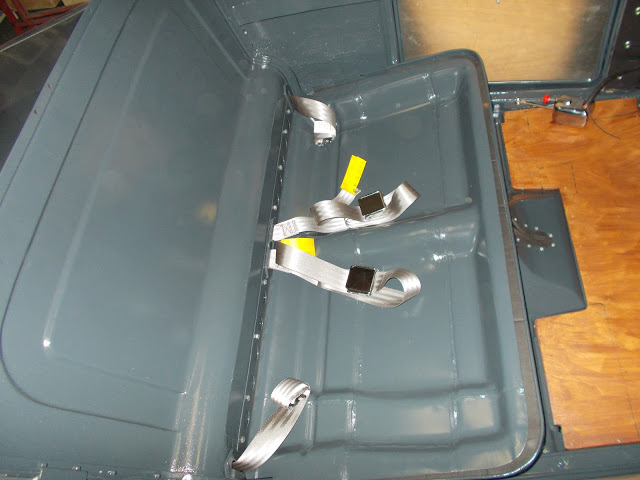

An original and almost rust free 1926-27 roadster body. The rear cut outs are to enable the car to sit low at the rear.
DSCN0159.JPG (61058 Byte) DSCN0754.JPG (66487 Byte) DSCN0848.JPG (80460 Byte) DSCN0756.JPG (115899 Byte)

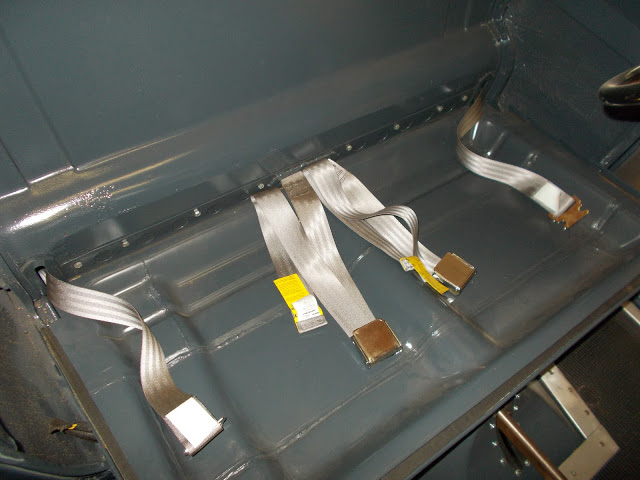

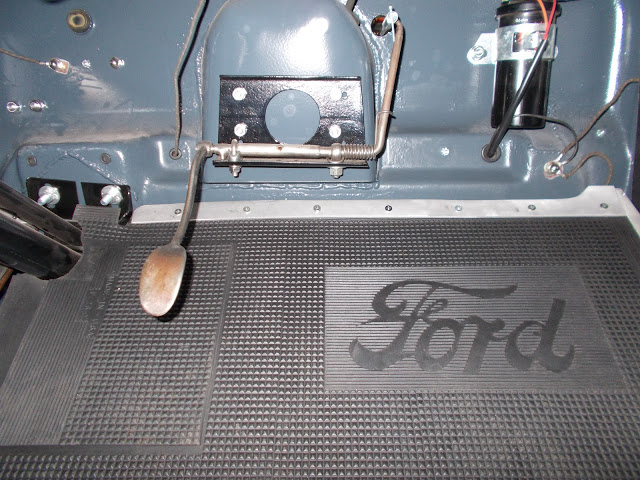

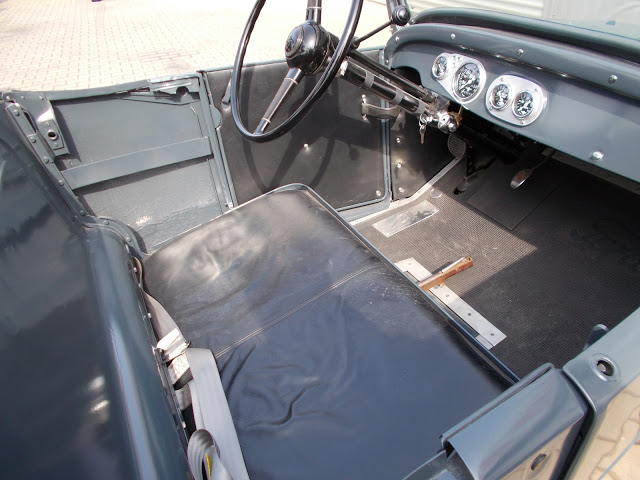

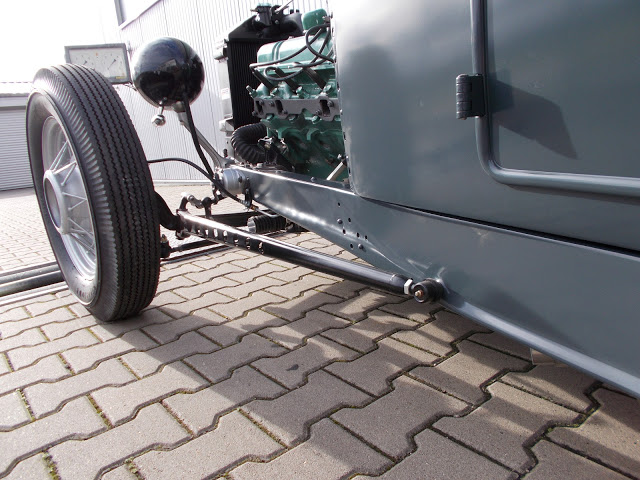

In order to lower the seating, a floor pan from a 1932 Ford roadster was used as a seat pan. Seatbelts, real leather upholstery and a rubber floor mat complete the picture. The gas pedal is from a 1932 Ford.
DSCN0257.JPG (122360 Byte) DSCN0760.JPG (82339 Byte) DSCN0259.JPG (101871 Byte) DSCN0258.JPG (83291 Byte)

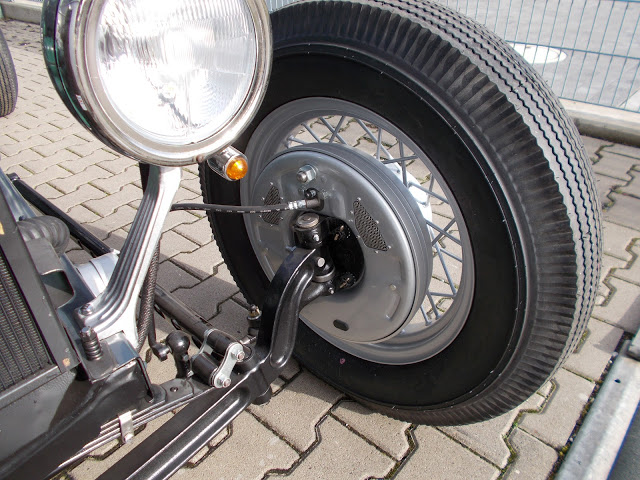

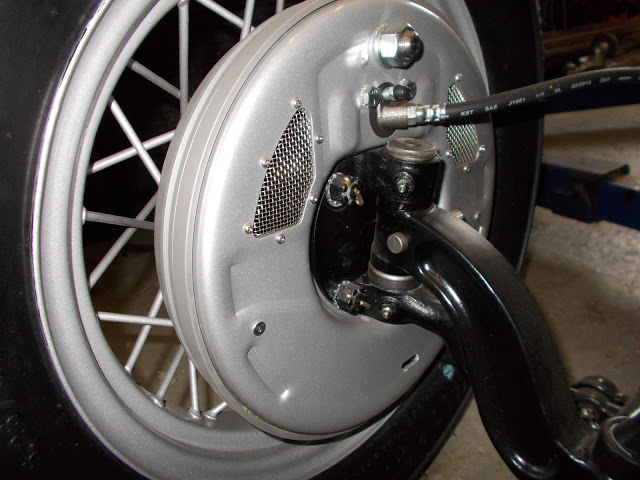

The front brakes are ventilated Lincoln
DSCN0260.JPG (77224 Byte) DSCN0253.JPG (115545 Byte) DSCN0254.JPG (118746 Byte) DSCN0849.JPG (105998 Byte)

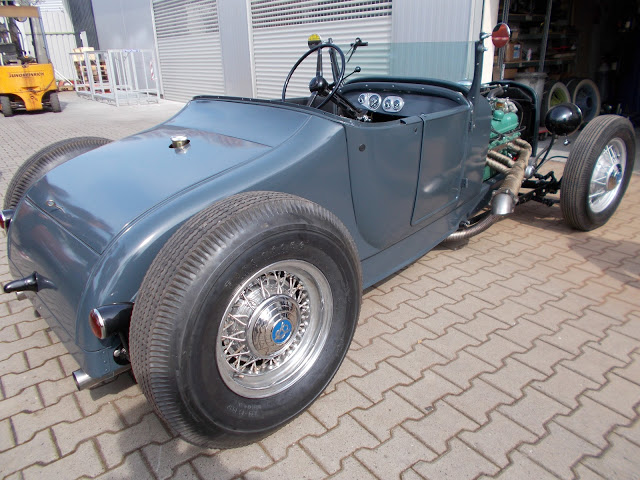

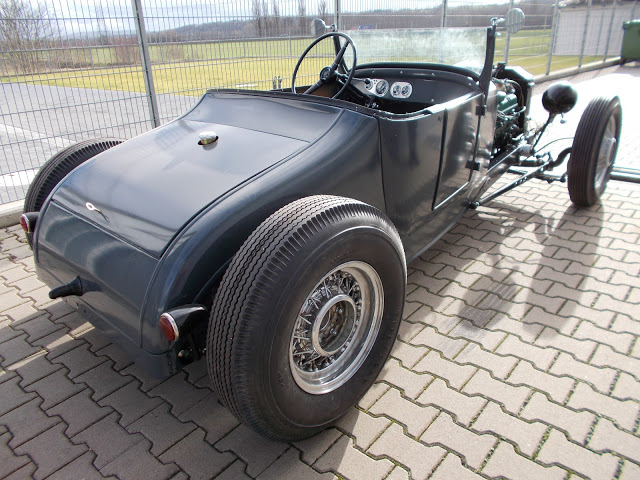

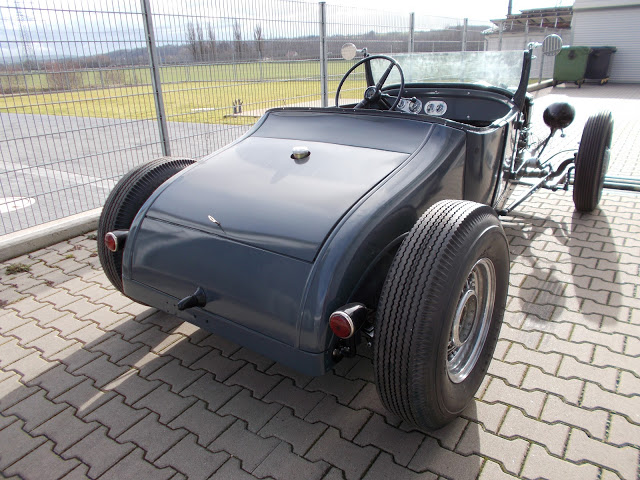

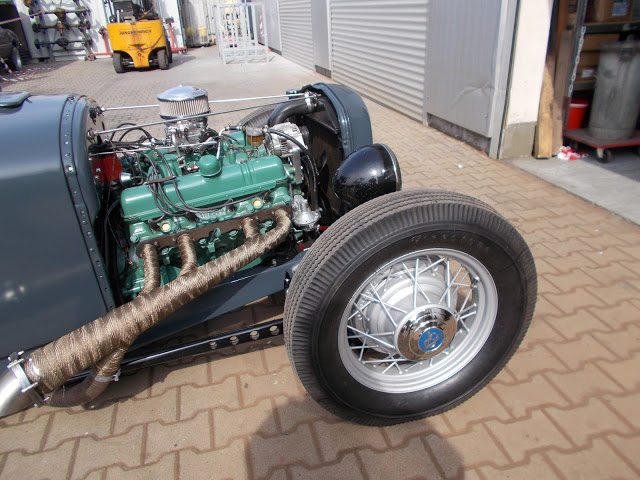

With the tank in the trunk, there's no room for any lugage now. Rear wheels are very rare 1950's Packard Caribean
DSCN0845.JPG (121497 Byte) DSCN0846.JPG (114432 Byte) DSCN0847.JPG (104760 Byte) DSCN0758.JPG (125812 Byte)

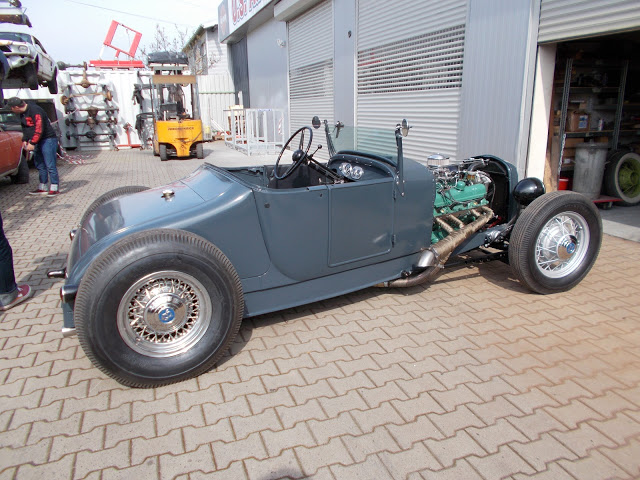

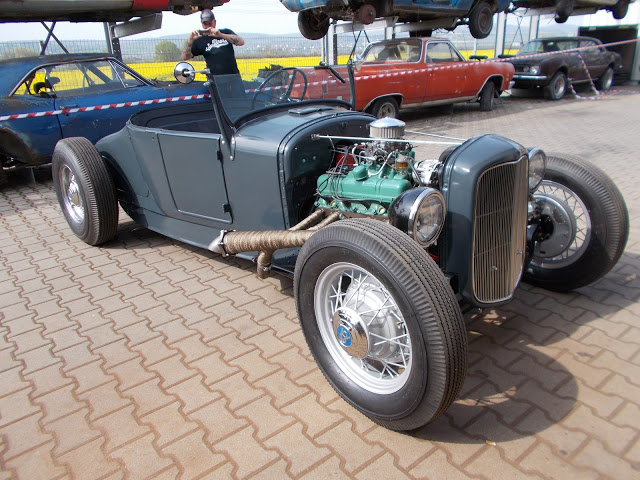

Finished! Let the fun start.
