1932 Ford 3W Coupe

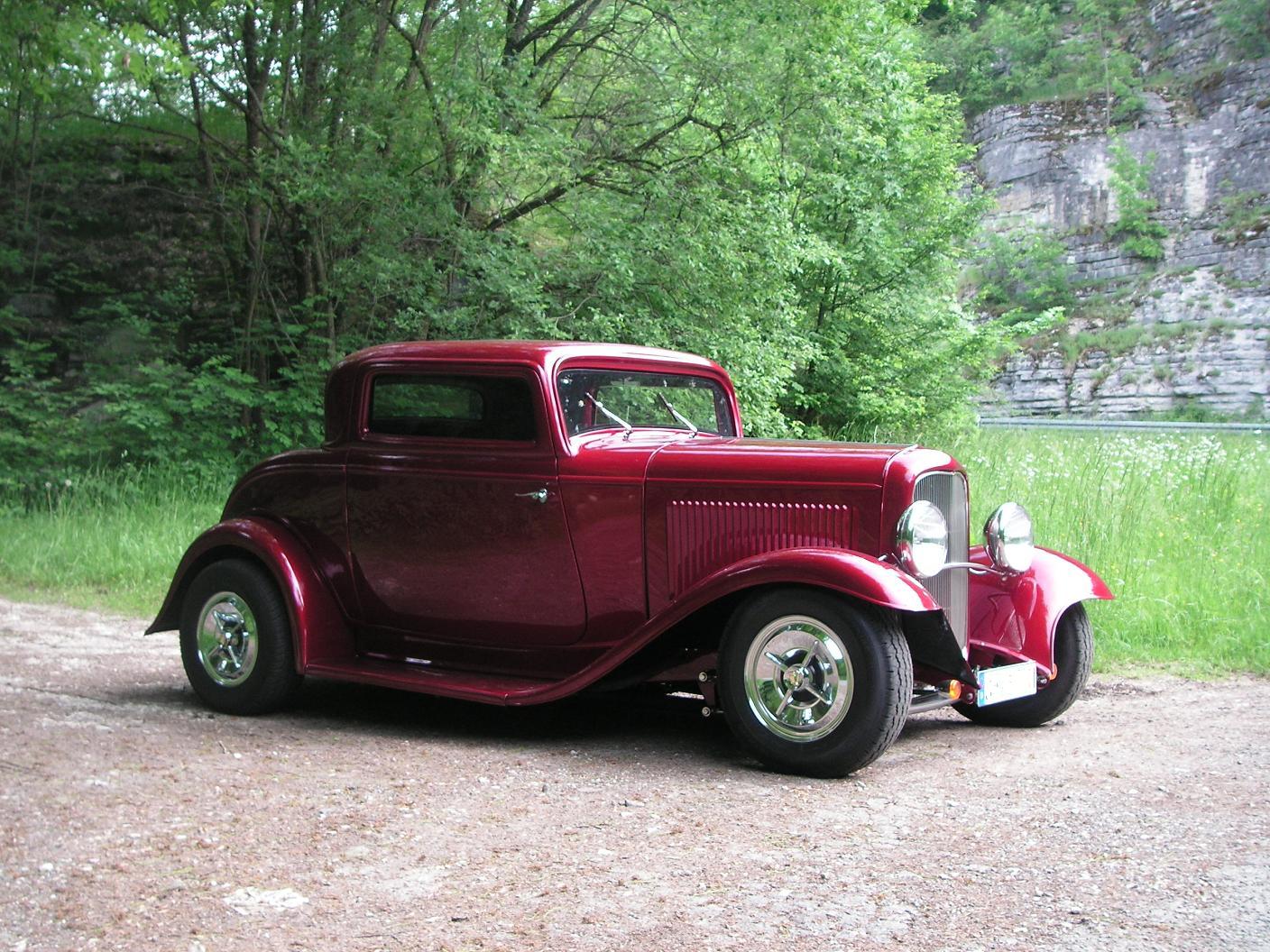

This '32 3W streetrod was a joint effort between Ed's Rod Shop and US-Autoteile in Unterhaid, Germany. The aim was to build a reliable daily driver rod. Featuring a 350SBC and a TH350 automatic transmission. The rear axle used was a late Fox type Mustang with a limited slip diff. We found that a C6 Corvette aluminium driveshaft fitted right in with no shortening required. The Corvette driveshaft is made of aluminium and polishes up to a great shine. Despite being a modern streetrod we went for a late fifties style and fitted the car with reproduction Dodge Lancer hupcaps and trimmed out the interior with black tuck 'n' roll.

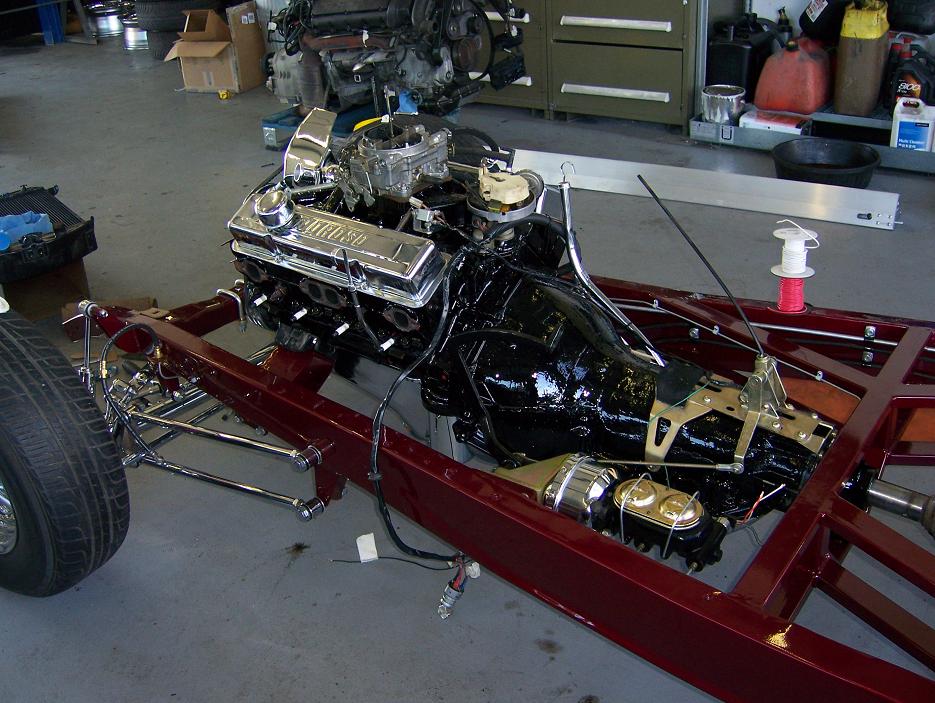

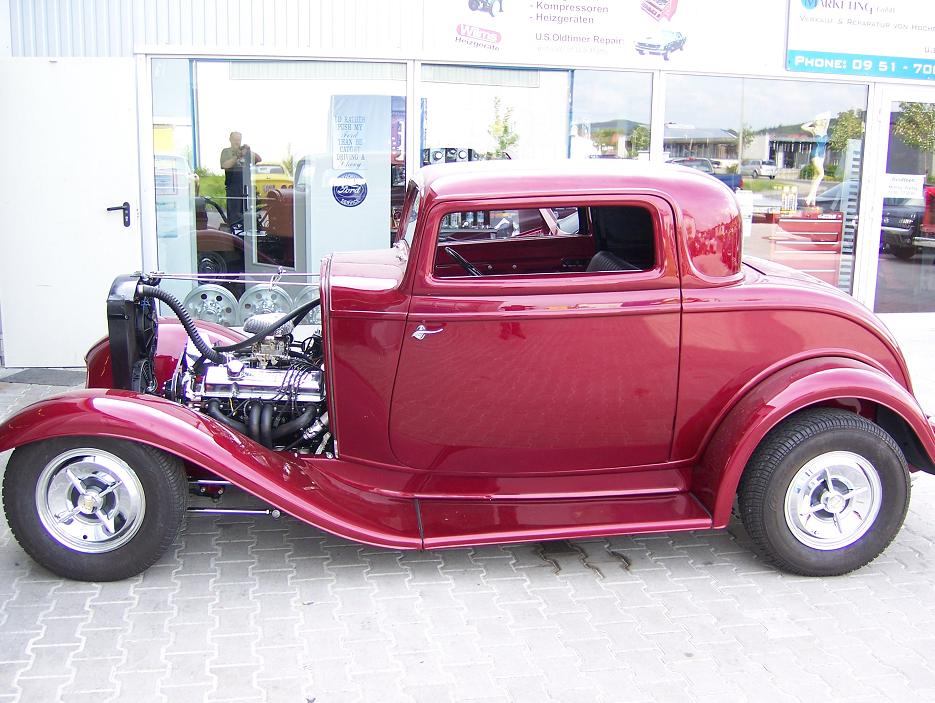

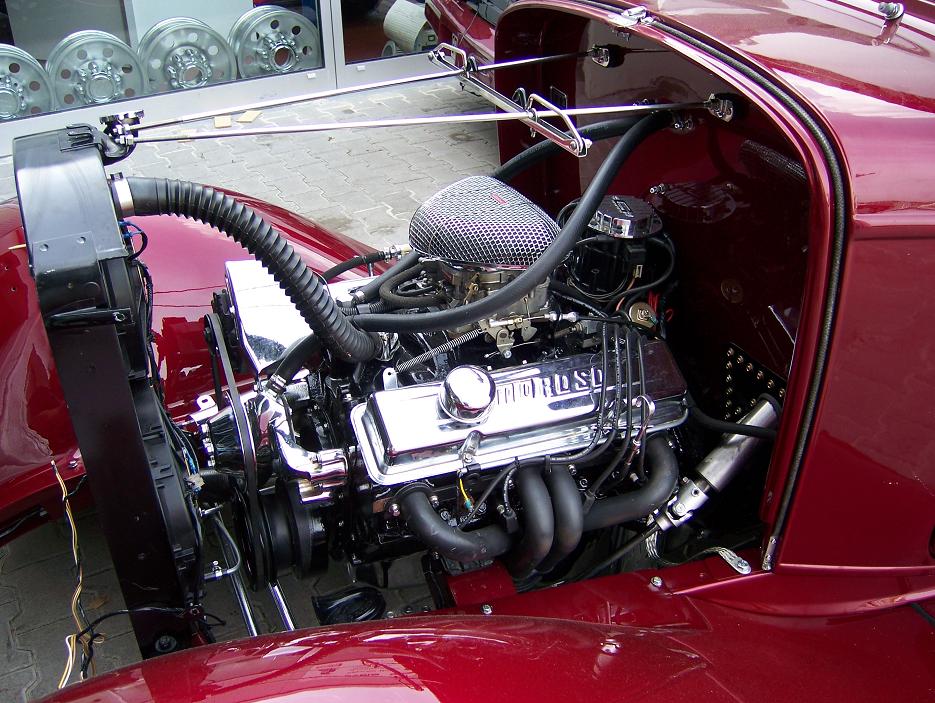

 Final assembly in paint. The Corvette SBC dressed up with chinese jewellery.

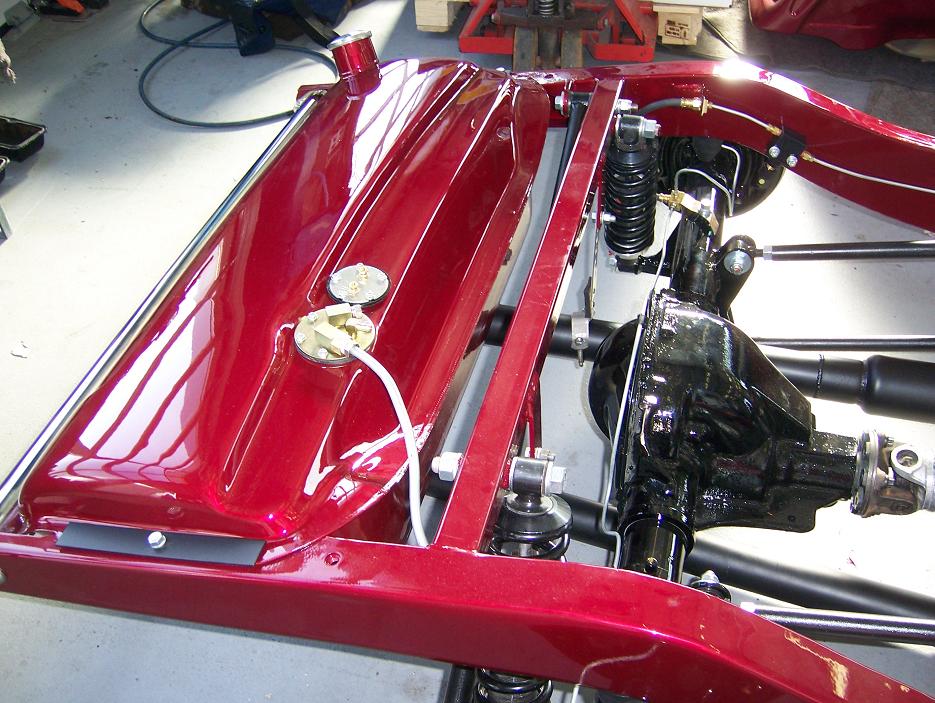

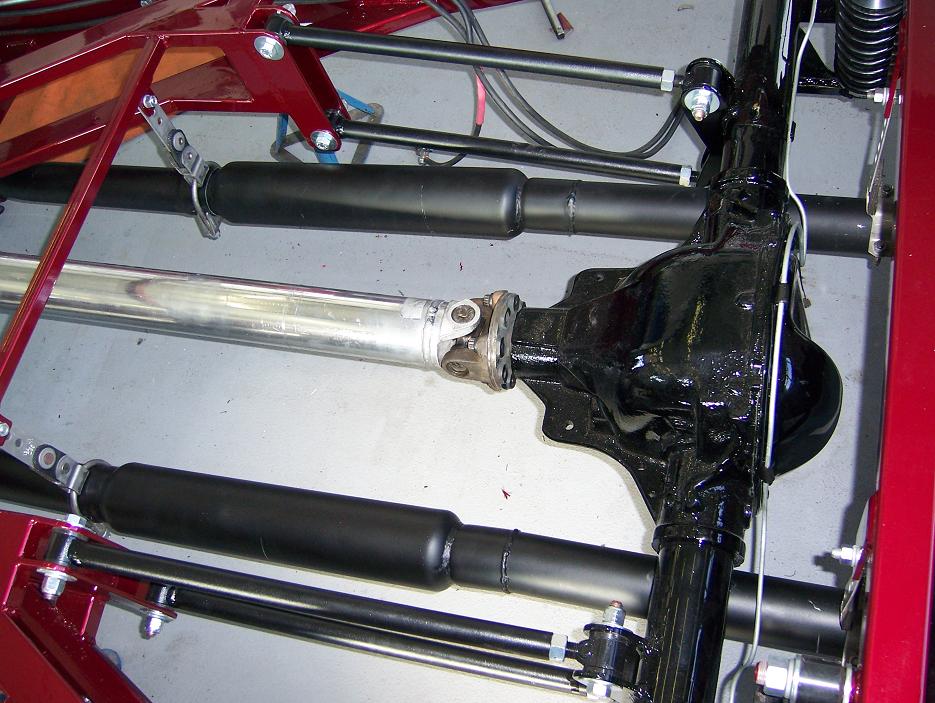

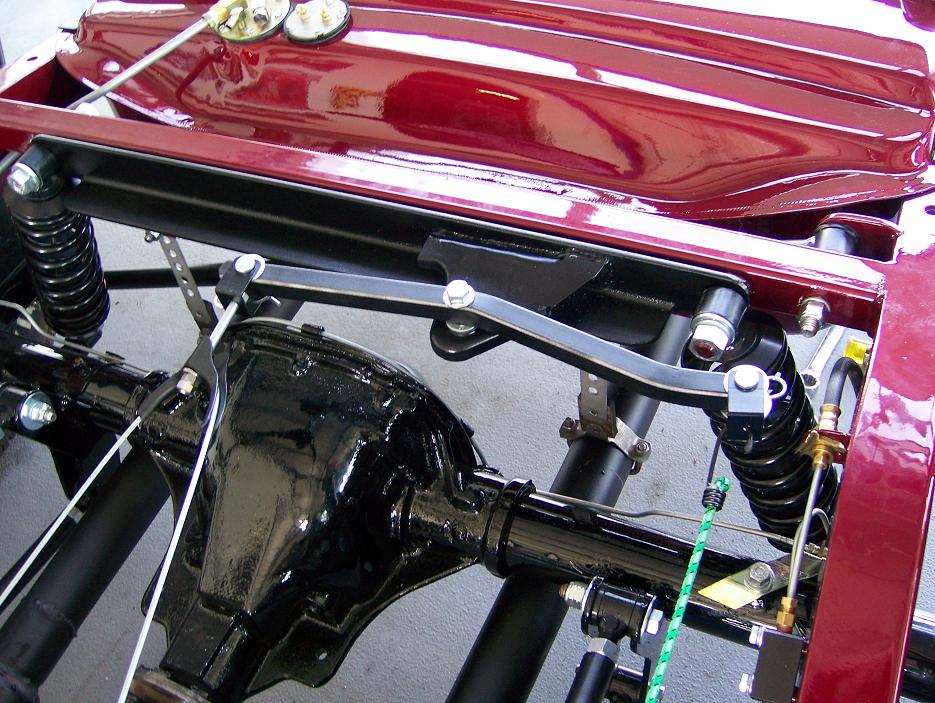

The Corvette C6 driveshaft fitted in without shortening. On the right the parking brake system.

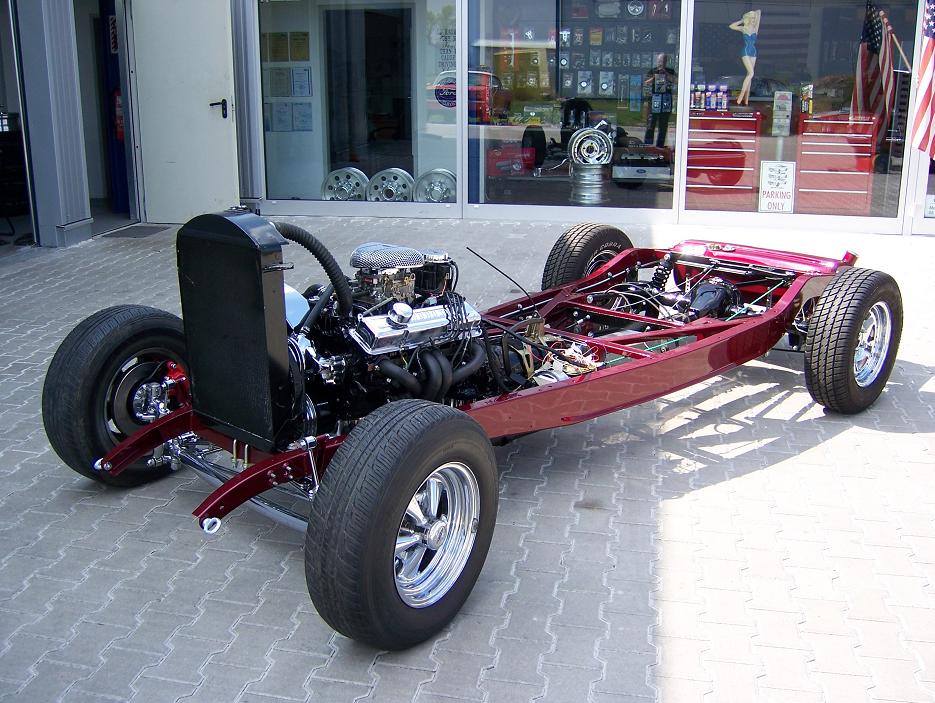

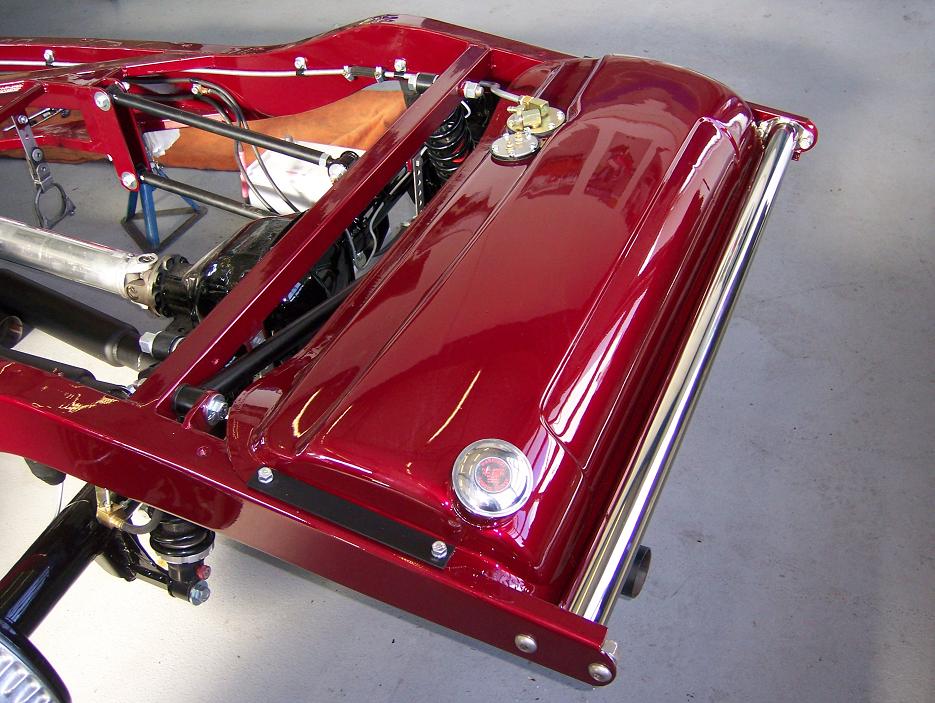

 This is the rolling chassis ready to receive it's freshly painted body.

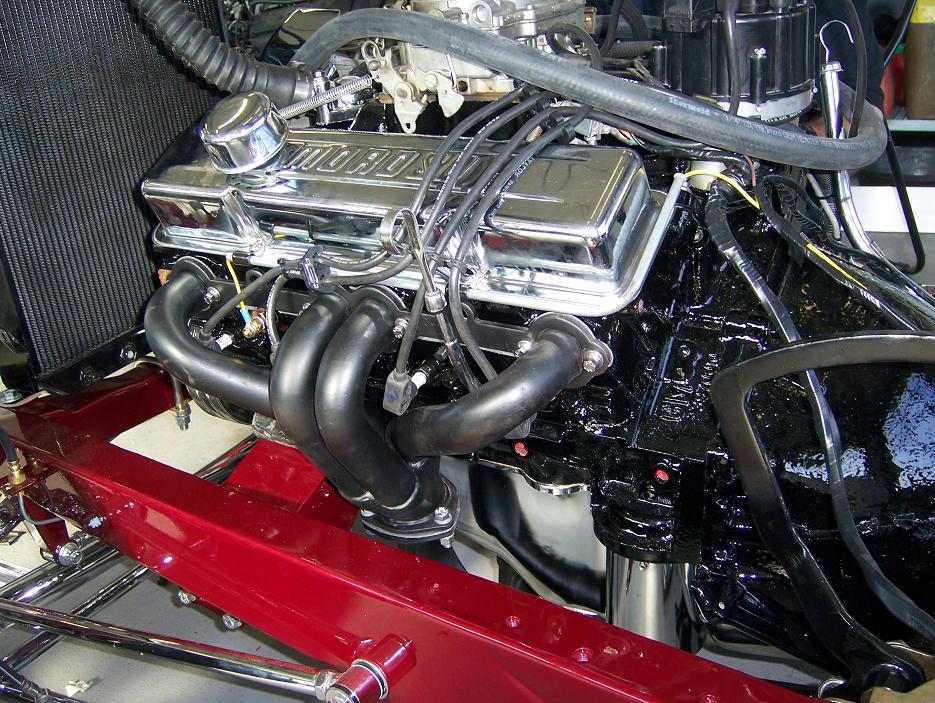

The SBC had a nice sounding tickover to it.

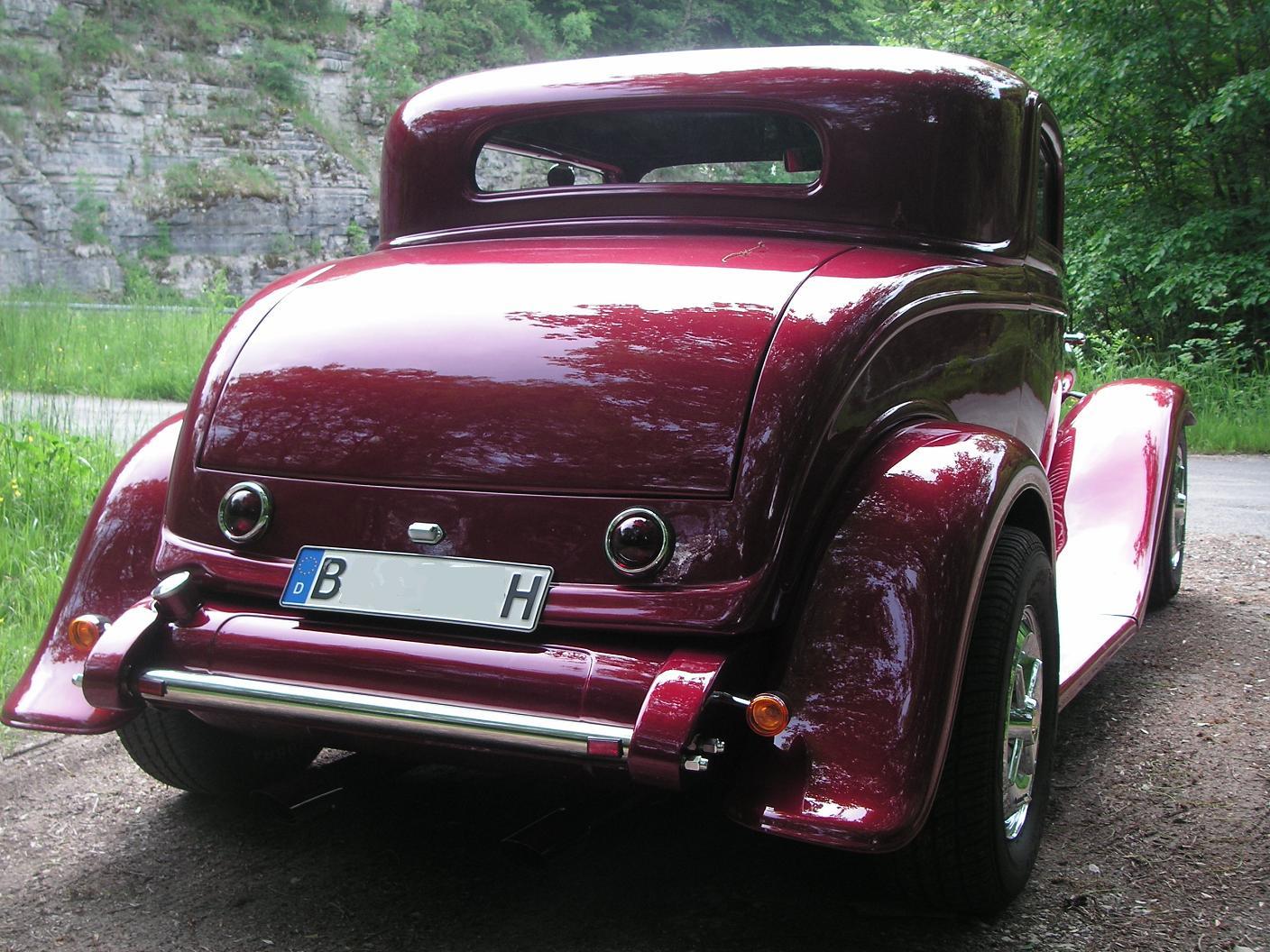

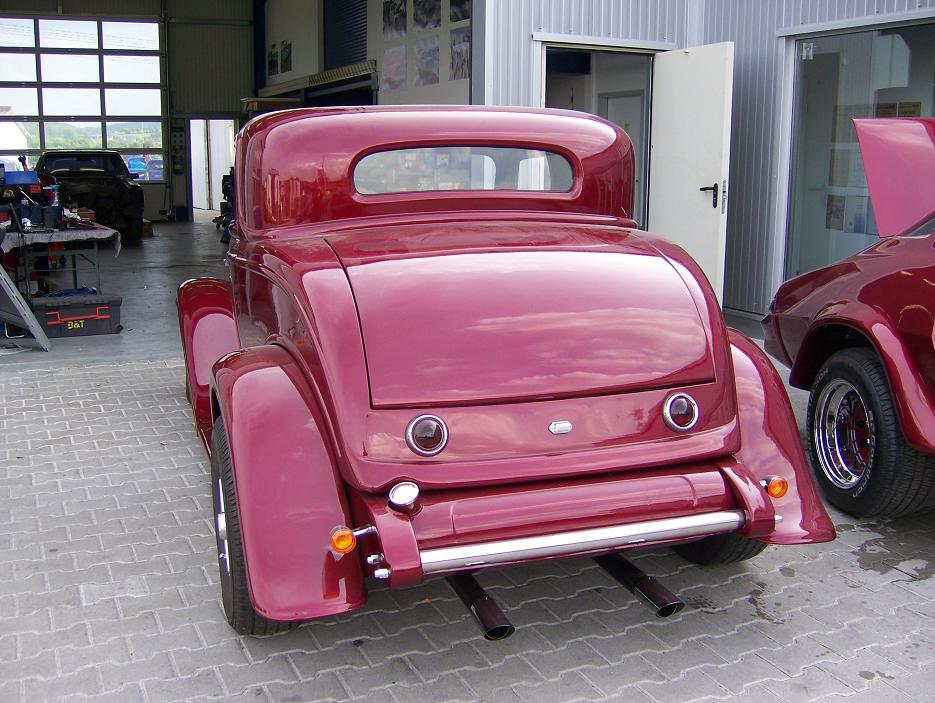

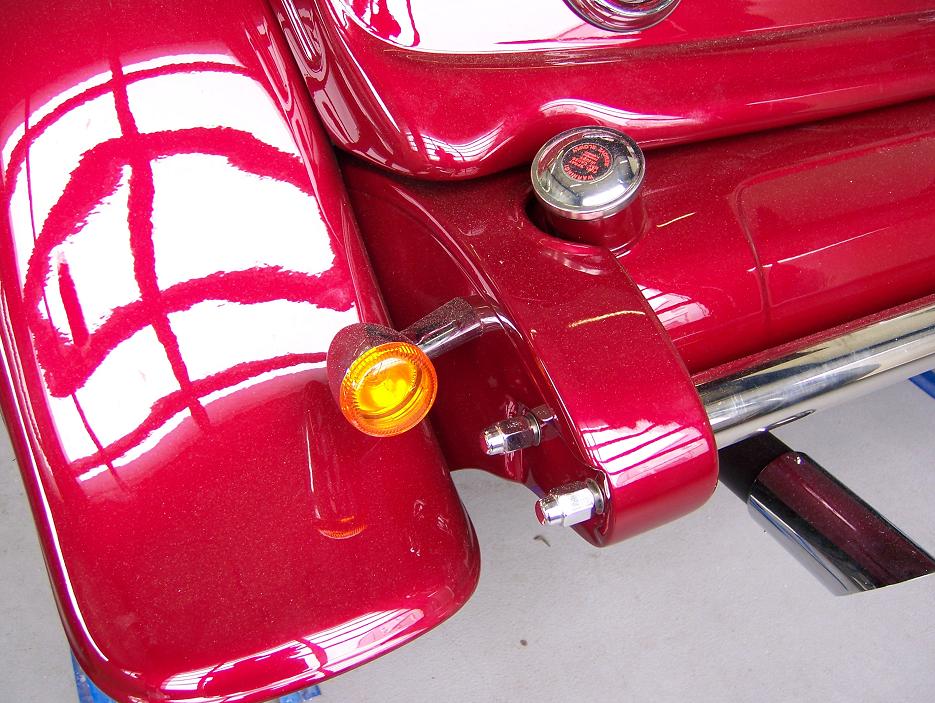

Harley Davidson directional indicators and '50 Pontiac rear lights were used.

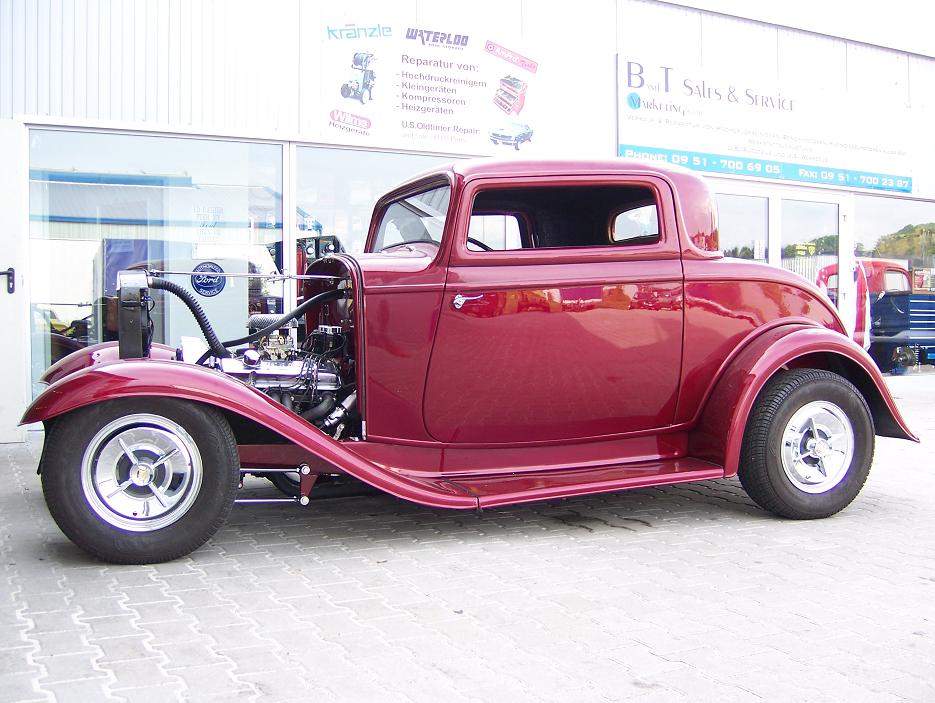

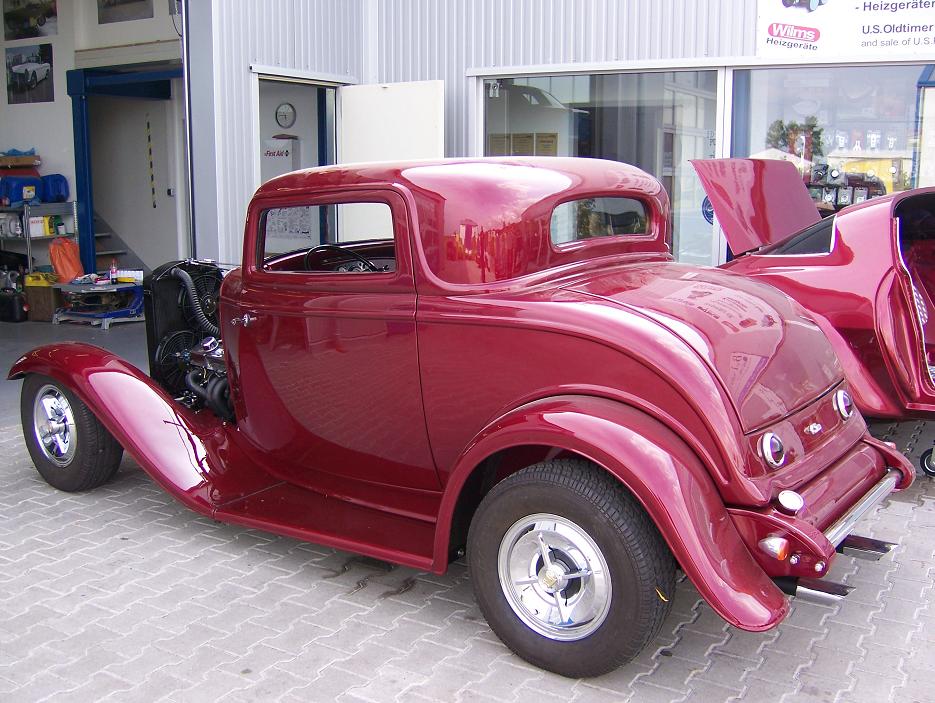

Getting close to the end.

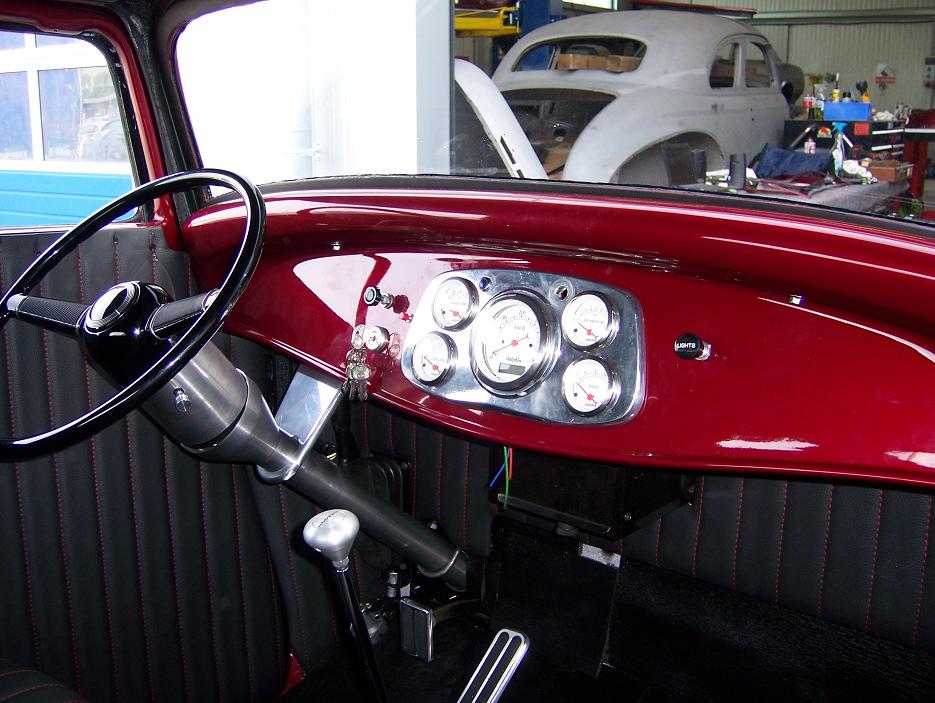

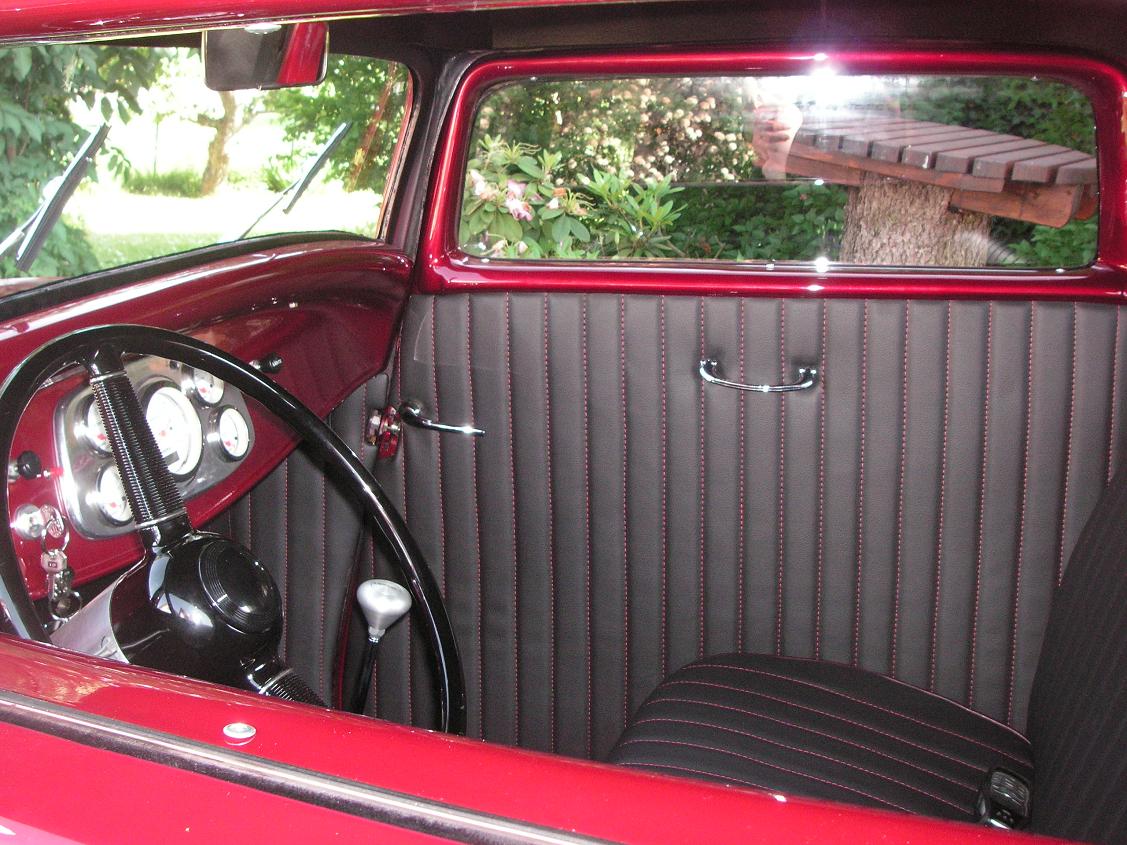

The steering wheel is a 15" reproduction of the popular 1940 Ford 'wheel.

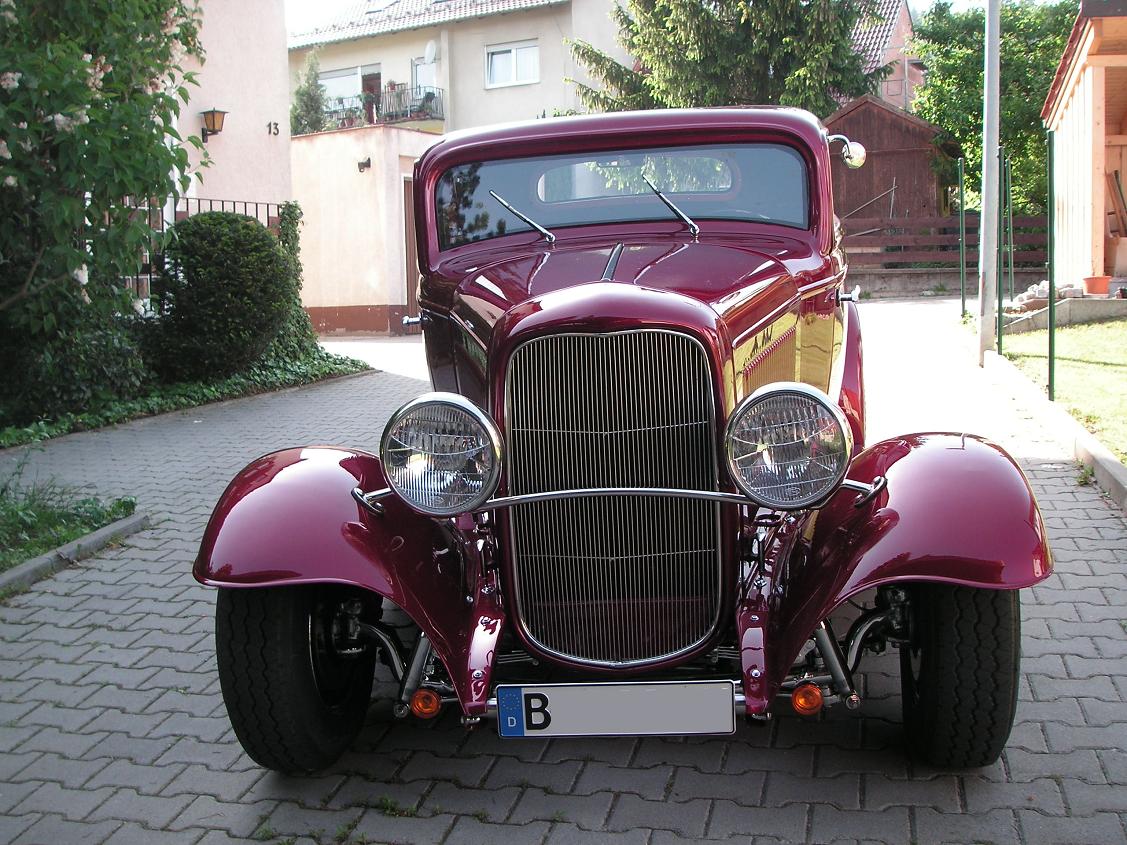

Headlights are reproductions of the original '32 lamps. The bench seat used was a Dodge Caravan center seat.

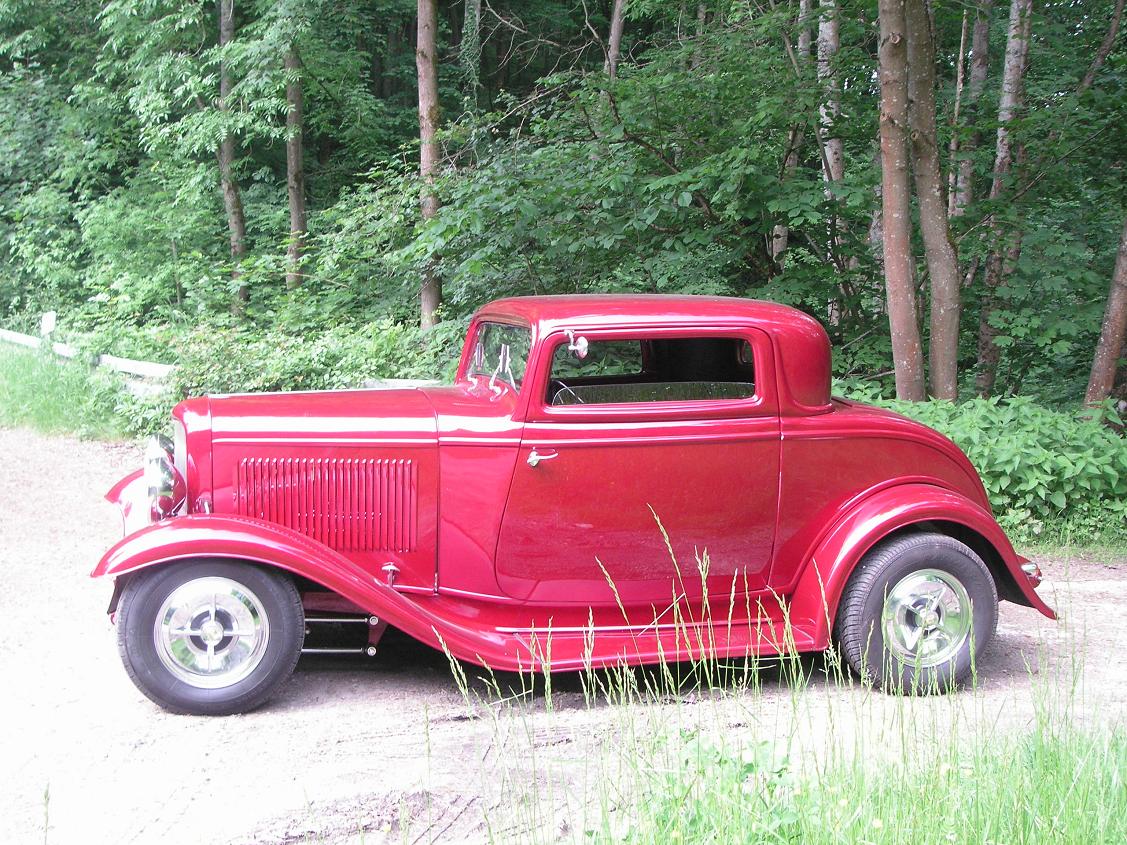

    The first time on the road with oldtimer hot rodder Ron looking on!
