1931 Ford A-V8 Coupe



Built in 2014 is this A-V8 rolling chassis for a 1931 Model-A coupe body. This features a 1932 Ford V8 chassis with 1932 Ford K-member, Model-A front and rear crossmembers, an 8BA flathead V8 (featuring an Eddie Meyer slingshot intake manifold), a 1938-39 3-speed Ford transmission, a 1936 Ford rear axle and 'bones with 1940 hydraulic brakes all round. 1940 steel wheels clad with Firestone crossply tires complete the picture. Steering is by Ford F1 side steer column. The front axle is original 1932 Ford with unsplit front bones. Spindles are 1948. Tie rod and drag link are from 1932.

-----------------------------
Bild 002.jpg (1467014 Byte) Bild 003.jpg (1332916 Byte) Bild 004.jpg (1228984 Byte)

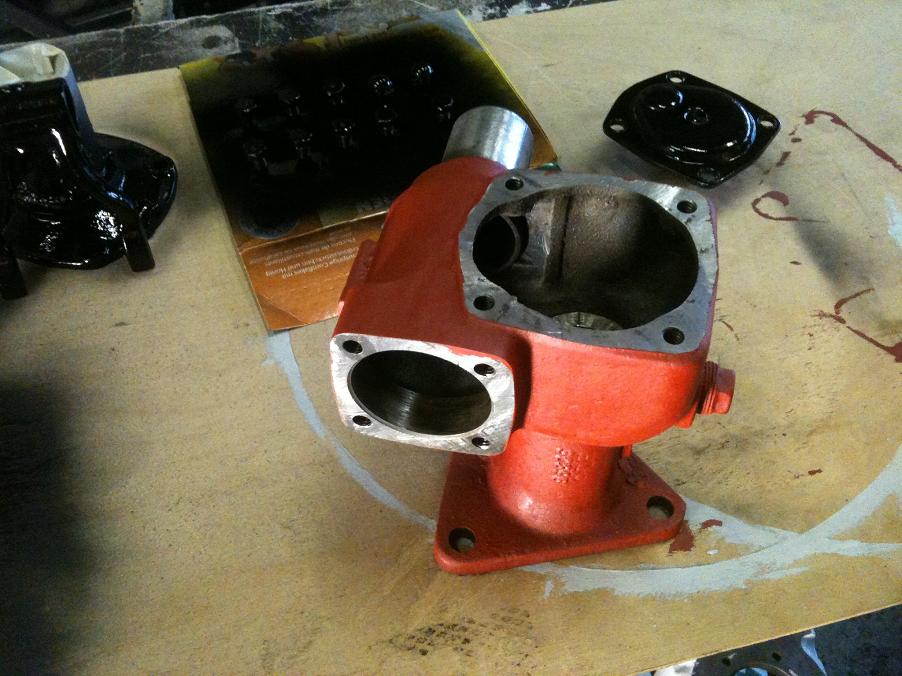

1939 Ford Standard transmission Painted red inside... ...and green outside
Bild 028.jpg (1464531 Byte) Bild 001.jpg (1427112 Byte) Bild 023.jpg (1460545 Byte)

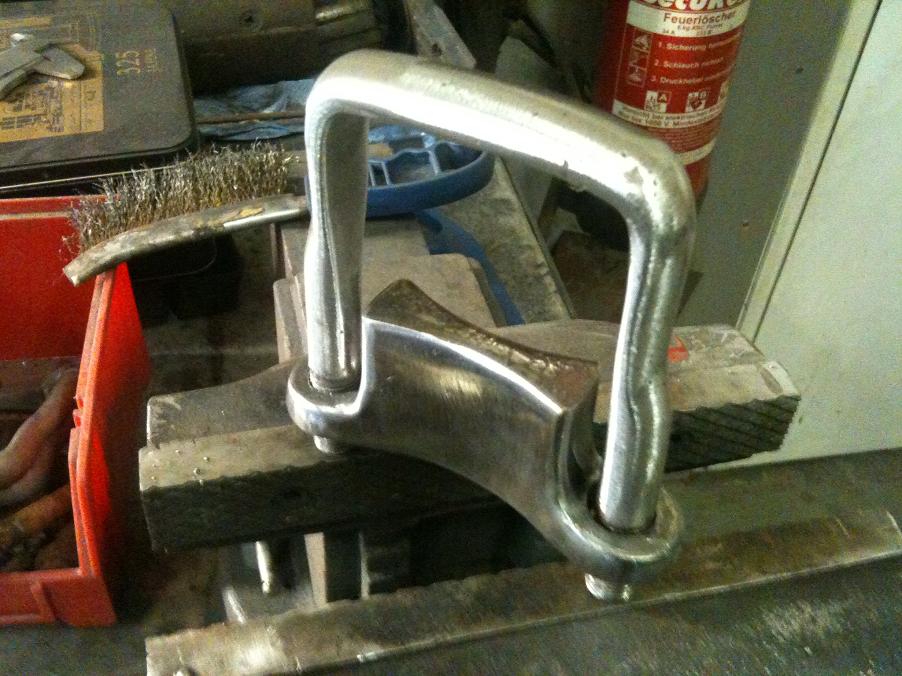

Safety wired bolts Ford F1 steering box being overhauled Custom modified rear spring clips
Bild 032.jpg (1355134 Byte) Bild 033.jpg (1321698 Byte) Bild 034.jpg (1300542 Byte)
Low riding A-V8 frame... ...with Model-A rear crossmember... ...and unsplit 1932 'bones
Bild 035.jpg (1330121 Byte) Bild 036.jpg (1301853 Byte) Bild 037.jpg (1315036 Byte)
A 1932 Ford K-member Dropped 1932 Ford front I-beam Eds Rod Shop's special V8 Motor mounts
Bild 038.jpg (1257164 Byte) Bild 039.jpg (1363543 Byte) BB01 (1).jpg (101408 Byte)
Note use of X-member strengthening legs... ...which give the original un-boxed Ford frame X-frame strength. Custom handbrake bracket
BB01 (2).jpg (121921 Byte) BB01.jpg (126509 Byte) BB01 (3).jpg (163640 Byte)

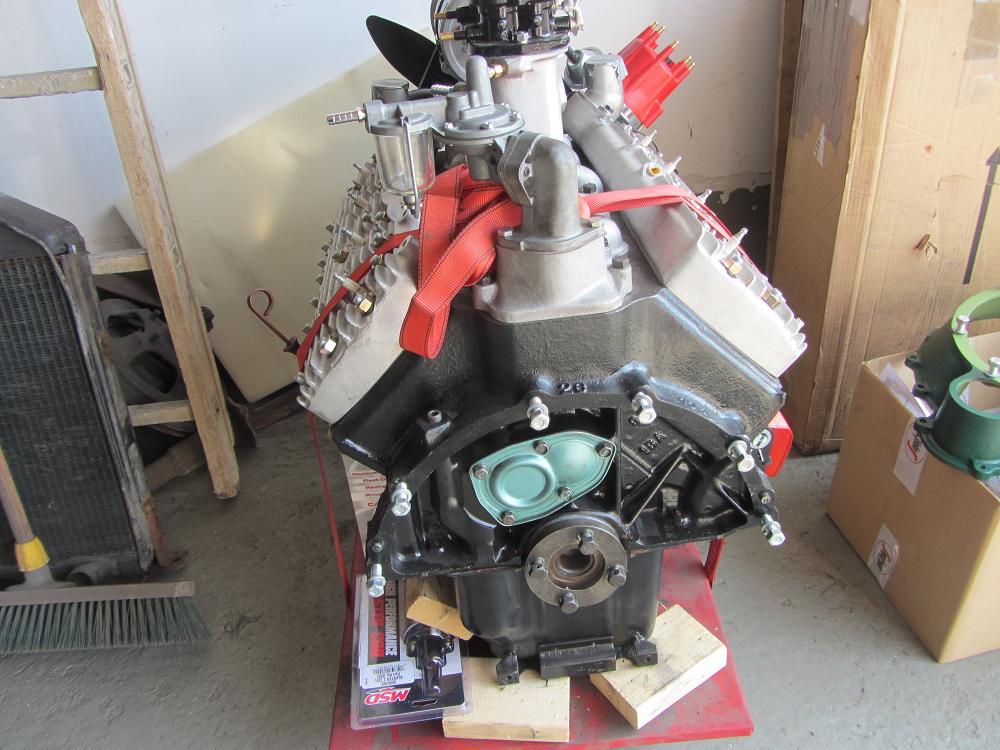

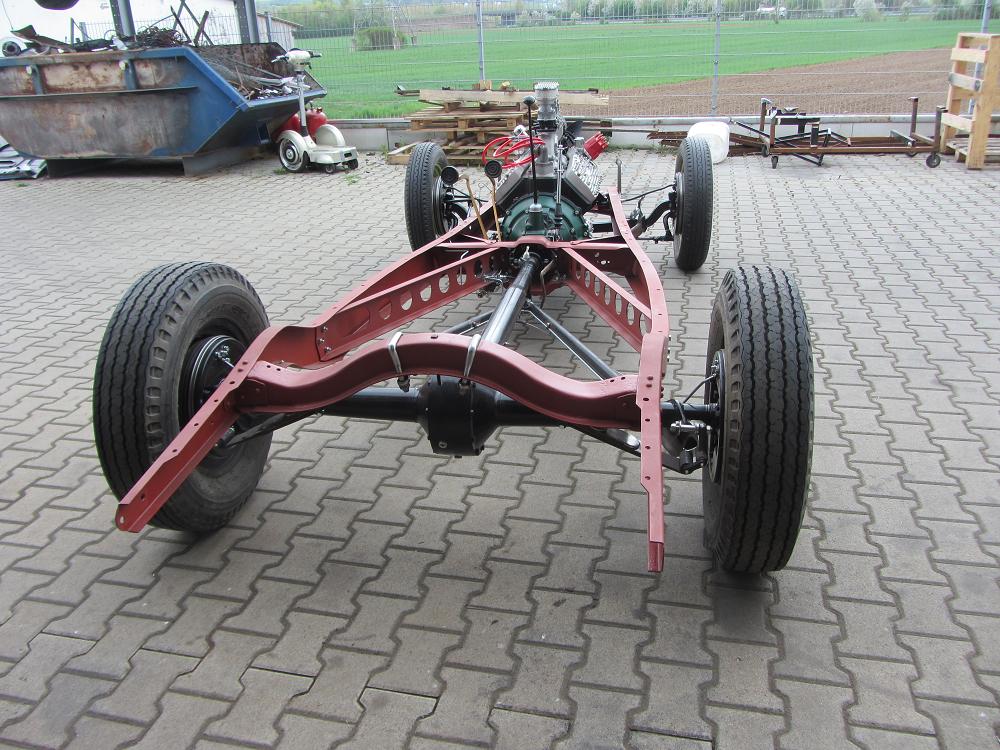

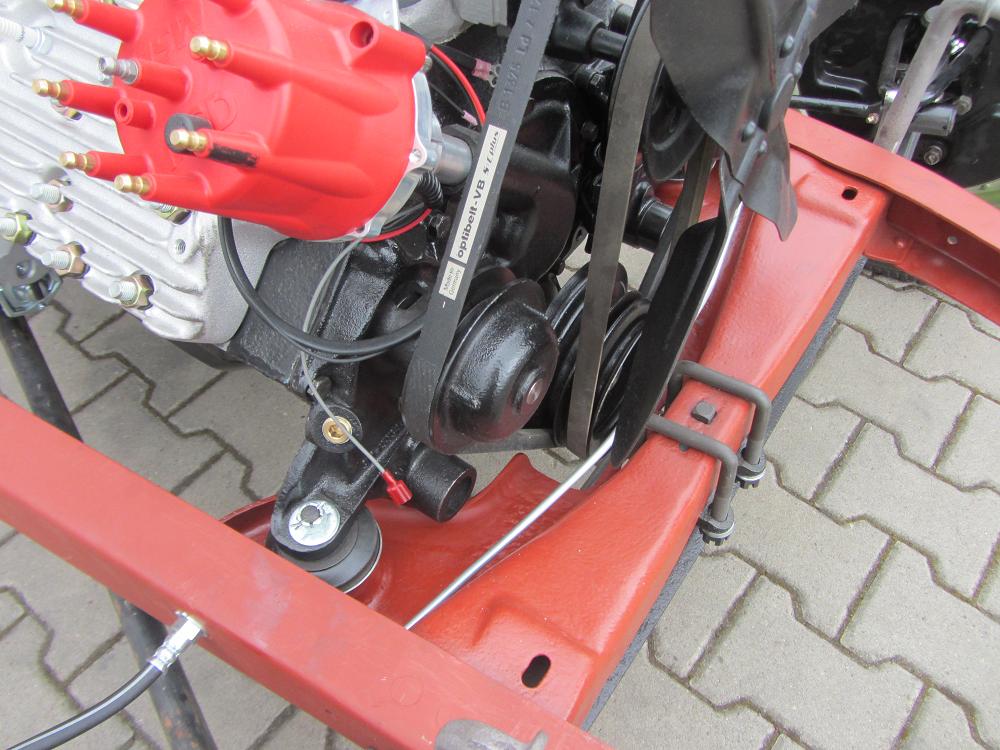

8BA Ford/Mercury V8 Electronic ignition Note the extra "X-legs"
BB01 (4).jpg (133592 Byte) BB01 (6).JPG (354616 Byte) BB01 (8).jpg (136567 Byte)

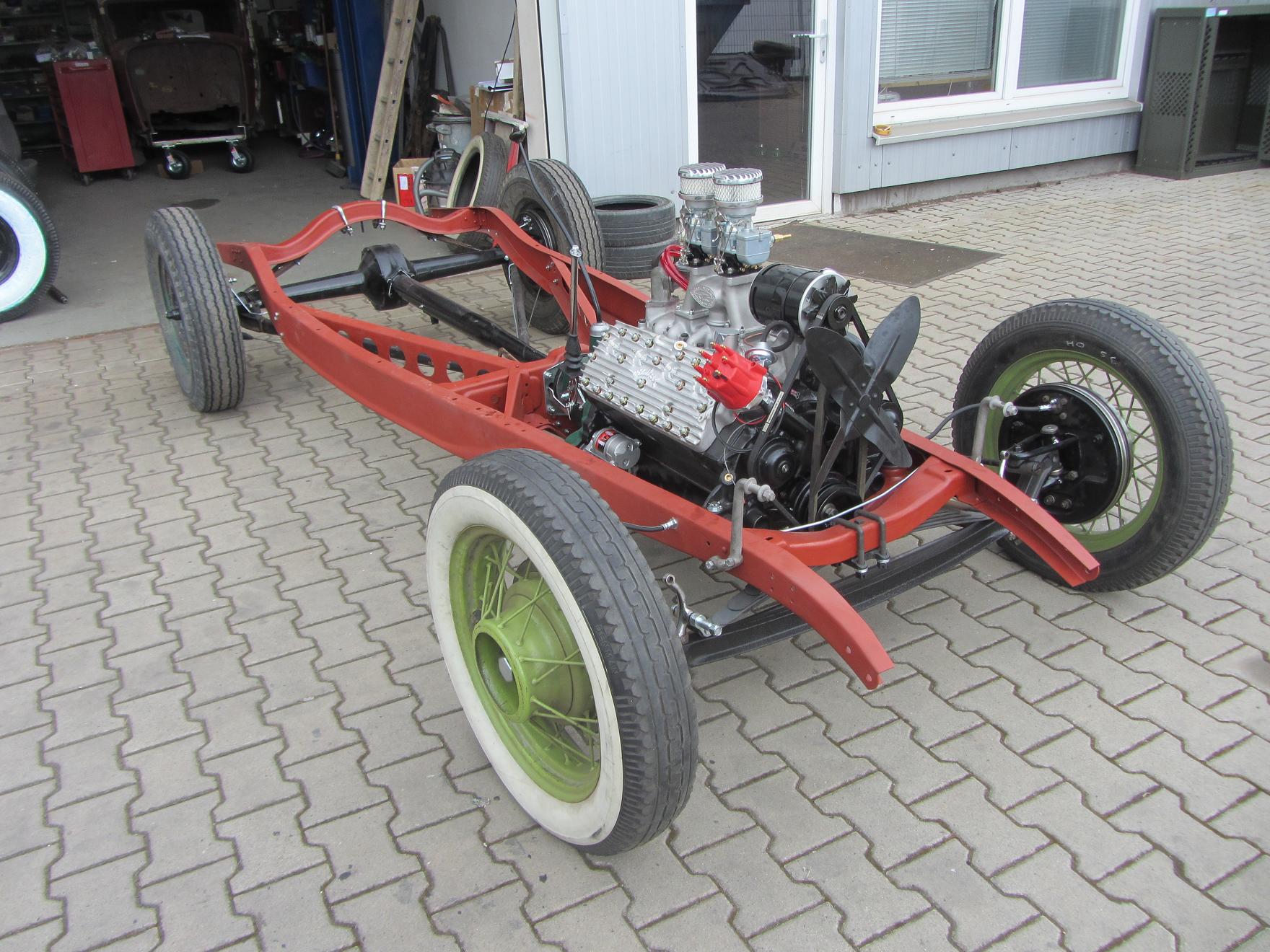

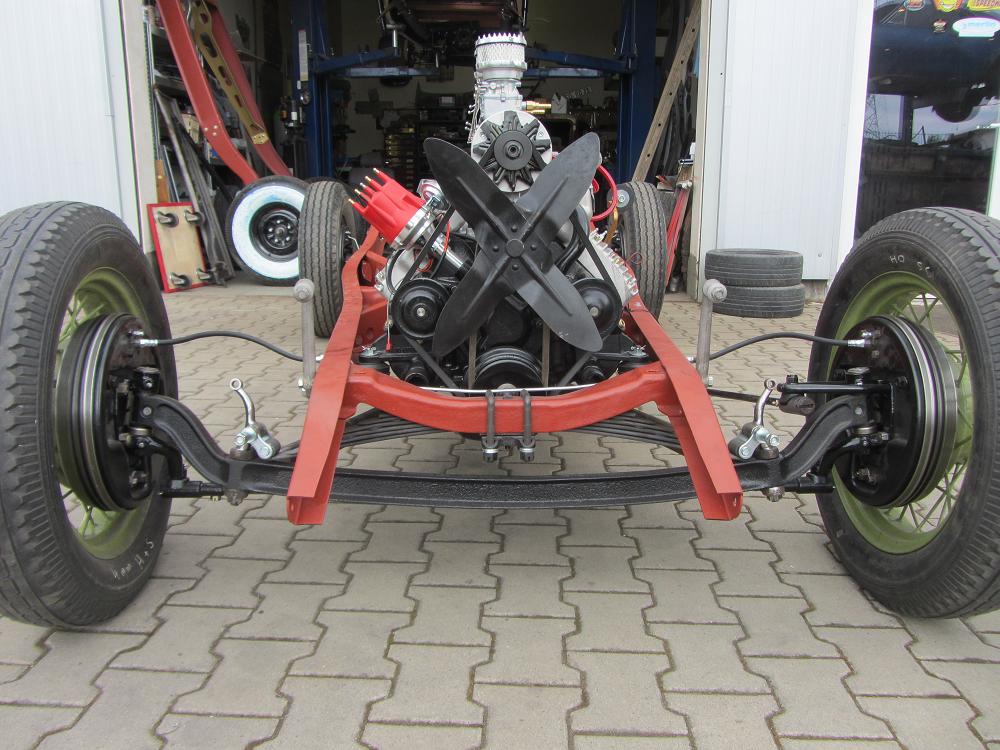

Low riding '32 frame Rolling chassis complete Dropped '32 heavy axle
BB01 (15).jpg (167863 Byte) BB01 (10).jpg (148262 Byte) BB01 (14).jpg (132460 Byte)

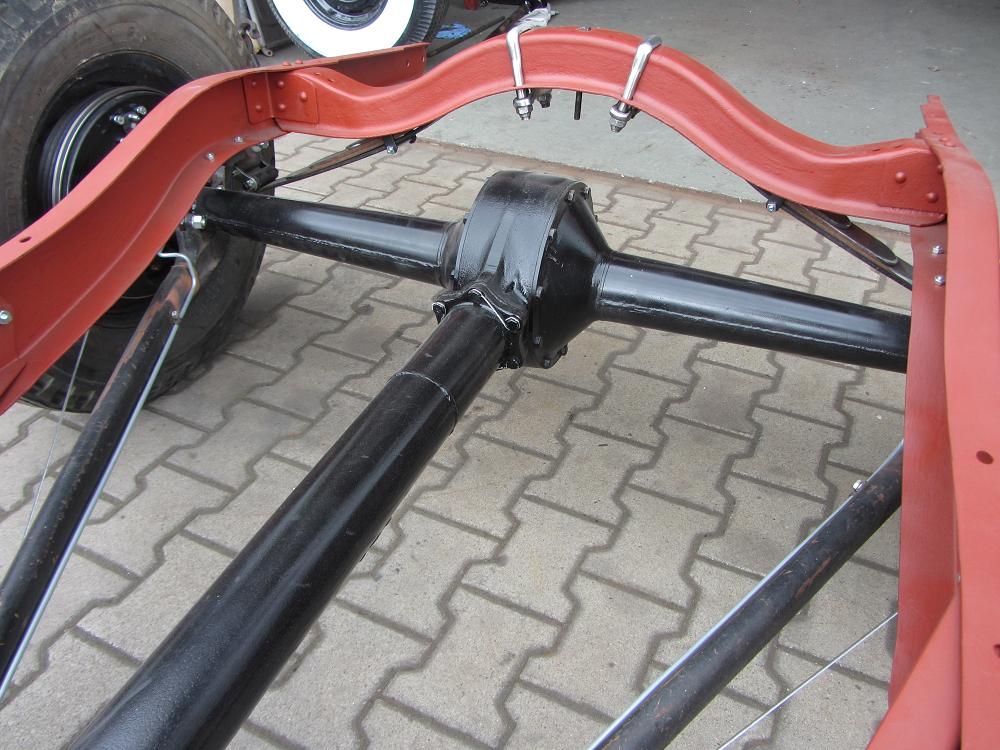

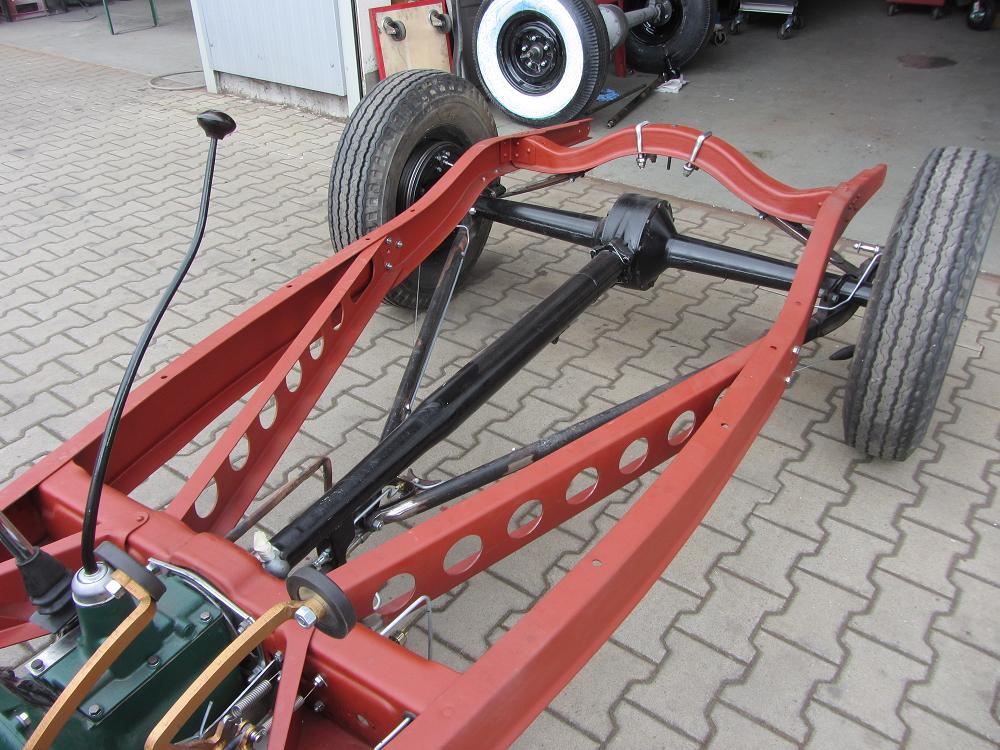

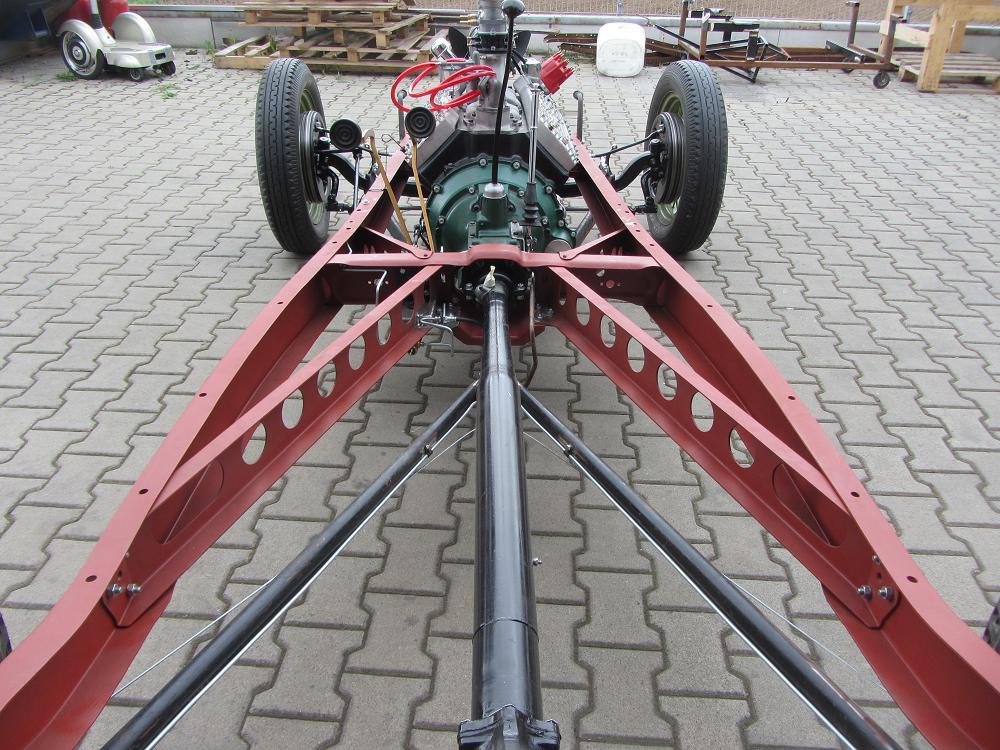

The extra strengthening X-legs... ...stiffen up the frame substantially Modified Model-A rear crossmember
BB01 (13).jpg (146359 Byte) BB01 (19).jpg (159849 Byte) BB01 (9).jpg (154143 Byte)

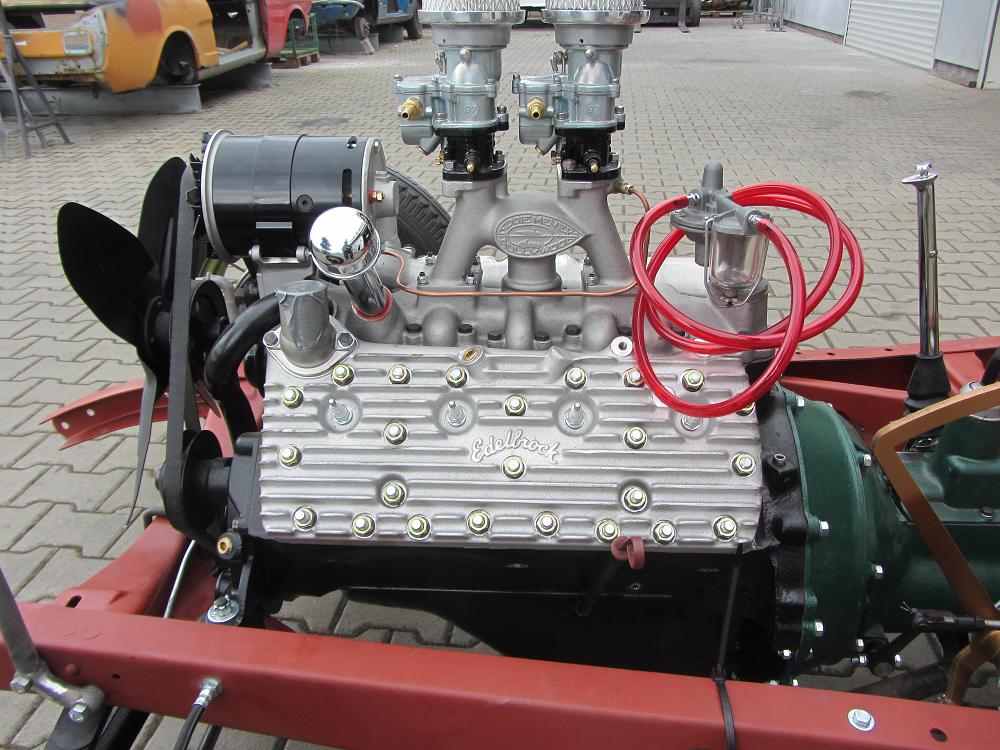

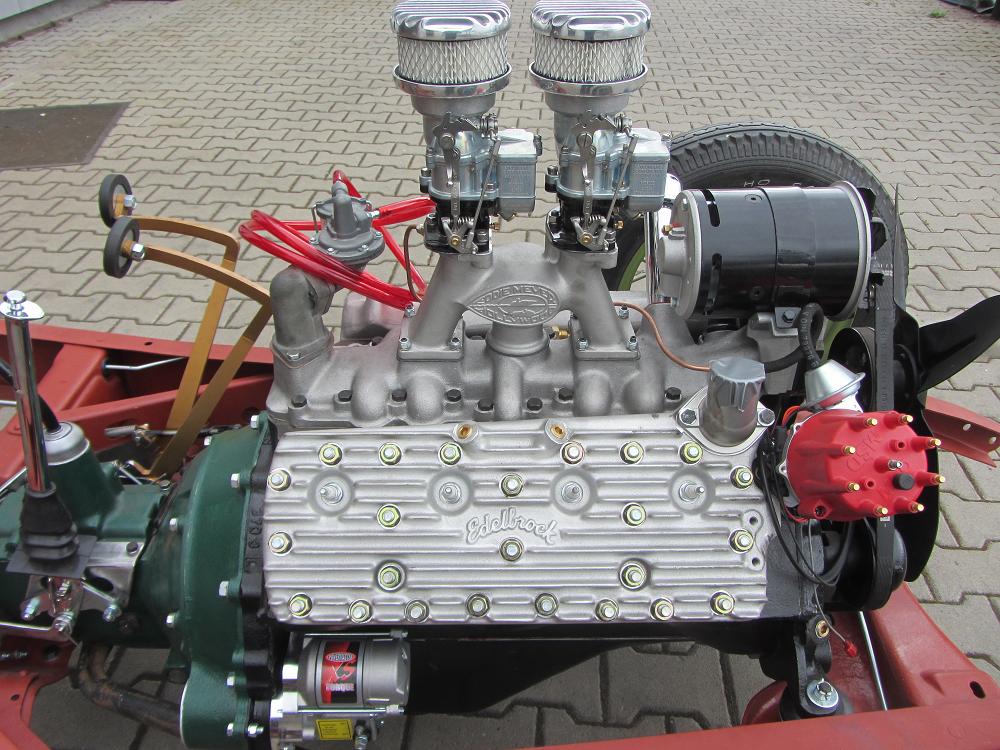

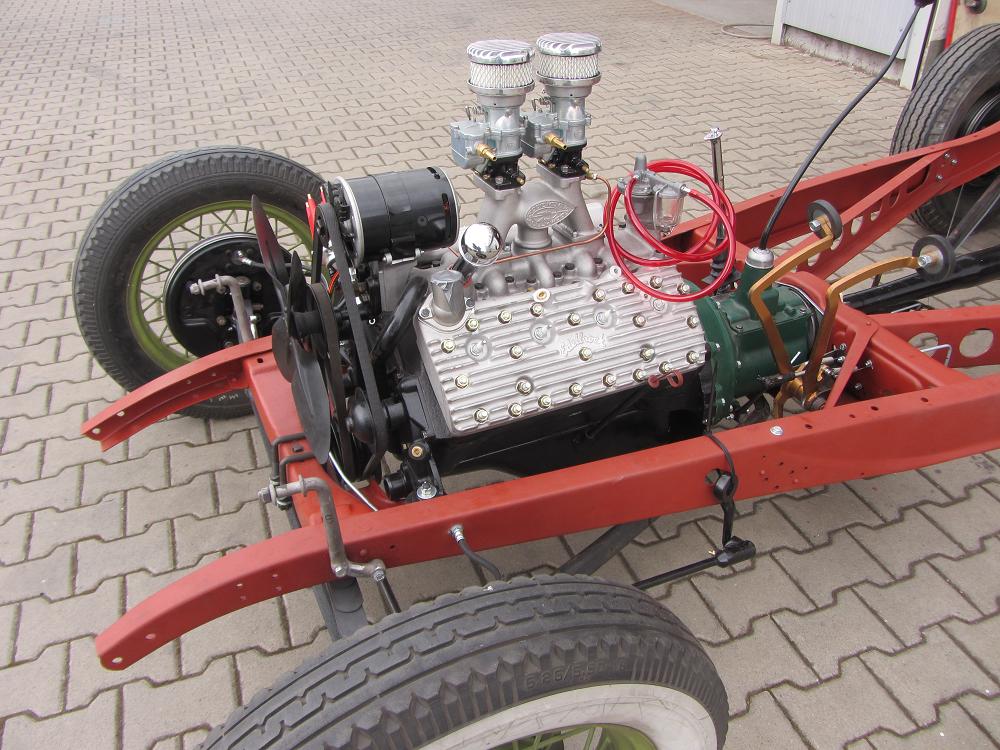

Eddie Meyers intake with twin 97s Edelbrock aluminium cylinder heads One wire alternator
BB01 (16).jpg (126994 Byte) BB01 (20).jpg (134424 Byte)

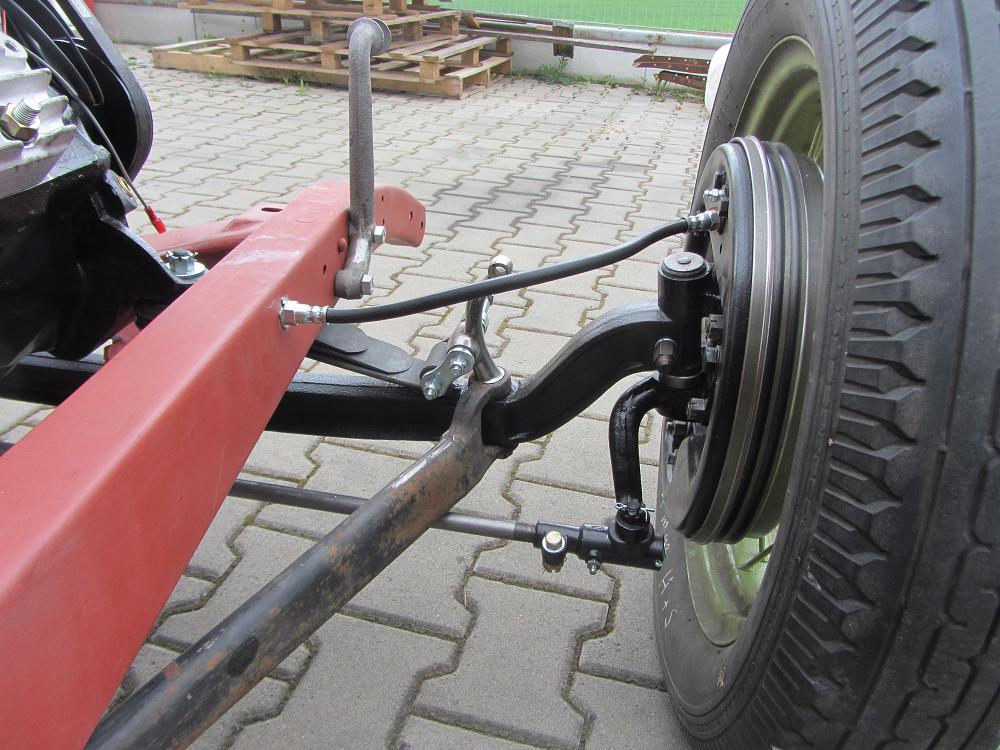

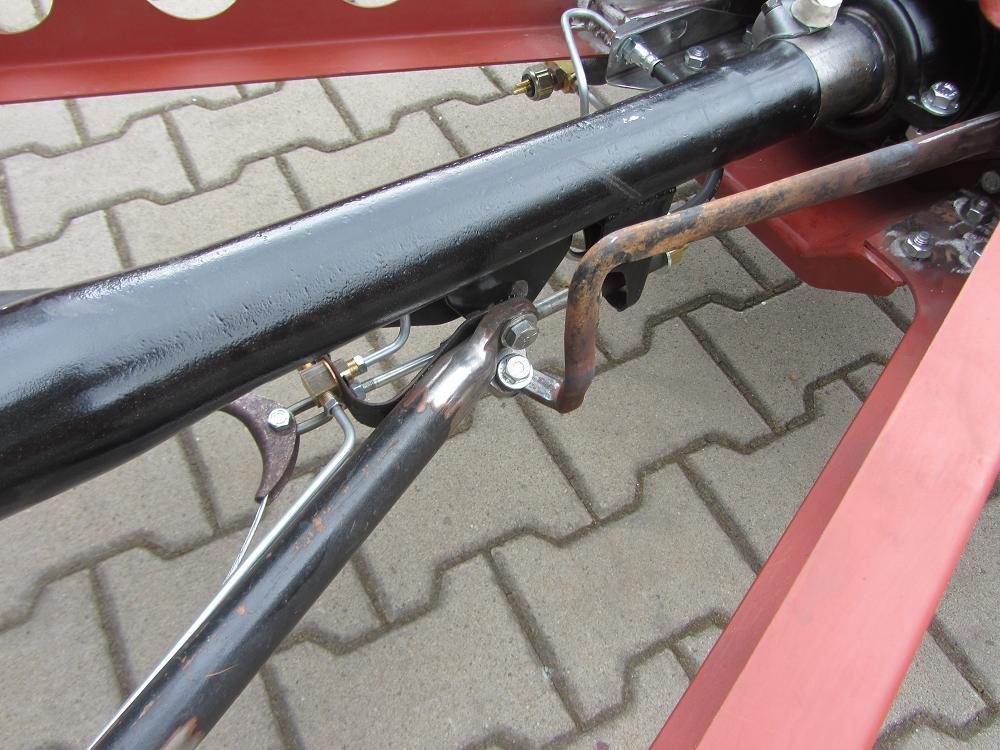

Handbrake mechanism close up Original '32 axle dropped in California
BB01 (12).jpg (141146 Byte) BB01 (17).jpg (120461 Byte) BB01 (18).jpg (128361 Byte)

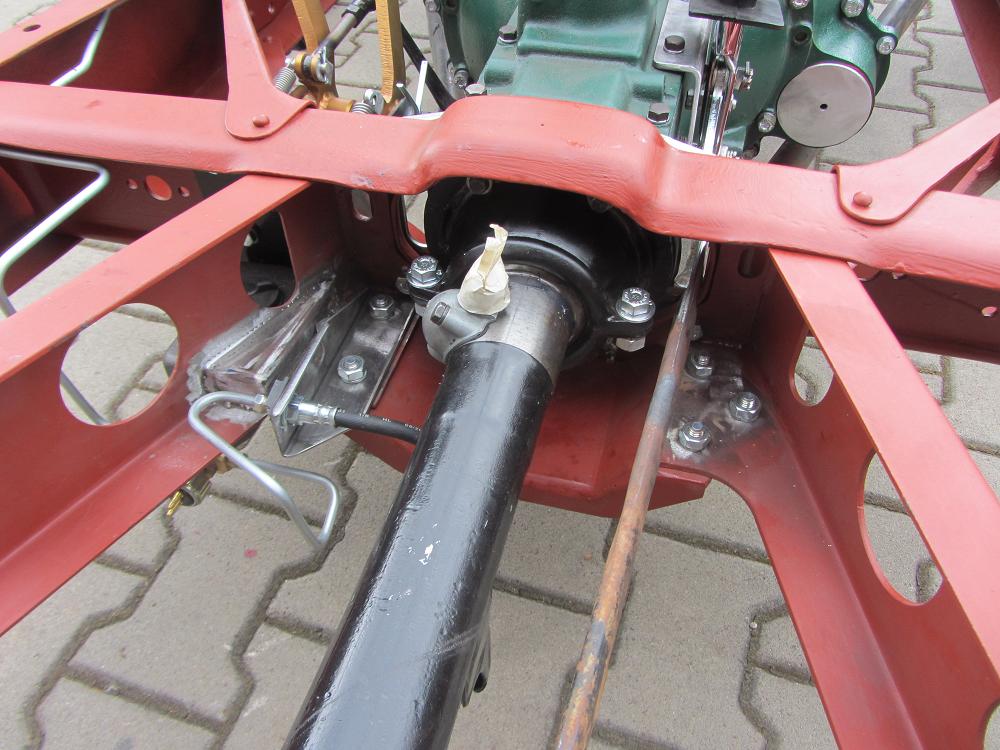

1938-39 3-speed Ford transmission Hydraulic brake conversion Handbrake detail
